Removal

1.	Remove the bumper. (Refer to Body - "Front Bumper")

2.	Disconnect the smart cruise control unit connector.

3.	Remove the smart cruise control unit assembly (A) from vehicle after loosening mounting bolts.

Installation

1.	Install in the reverse order of removal.

2.	Align the smart cruise control sensor. ("Advanced Smart Cruise Control (ASCC) Alinment" )

3.	Install the bumper cover. (Refer to Body - "Front Bumper Cover")

Advanced Smart Cruise Control (ASCC) Rader Sensor Alignment

The objective of the alignment is to ensure correct SCC performance. In order for the sensor to perform correctly, the sensor must be aligned correctly. The sensor alignment has major impact on road estimation, lane prediction, and target processing. When the sensor is misaligned, the performance of SCC cannot be guaranteed. Therefore, when the sensor is reinstalled or a new sensor is installed on a vehicle, the sensor shall be aligned by service personnel.

The sensor must be aligned when;

•	The sensor is reinstalled after removing.

•	A new sensor is installed on a vehicle.

•	The sensor or nearby parts are impacted in a collision.

•	The sensor can not recognize a vehicle ahead.

The sensor can not recognize a vehicle ahead.

•	Remove heavy objects, such as luggage in the trunk, from the vehicle.

•	Remove heavy objects, such as luggage in the trunk, from the vehicle.

•	Check wheel alignment.

•	Check the pollution condition of sensor cover

Advanced Smart Cruise Control (SCC) Radar Sensor Alignment

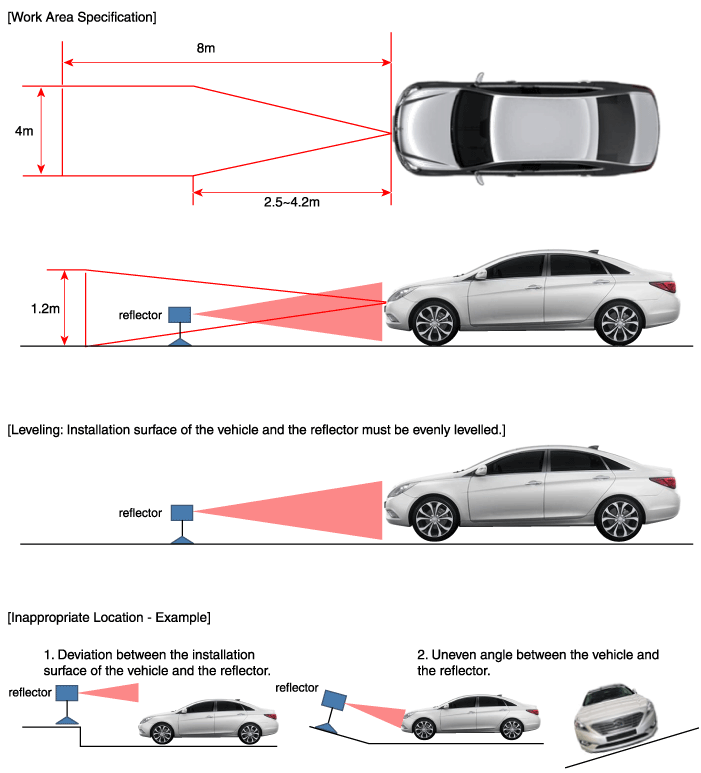

Stop the vehicle horizontally at a flat place.

•	Adjustment may not be accurate if the installation surface height and angle of the vehicle and reflector are different.

•	Perform in an area with minimum clearance of 8m front, 4m sides, and 1.2m above the vehicle.

•	Remove heavy objects from inside of the vehicle (seating area and trunk).

•	Ensure that all tires are filled with spec air pressure.

•	Remove objects (metal plates, resins, etc.) that may cause electric signal interference from the area where sensor alignment is performed.

•	Be sure that the vehicle is not moved and free from vibration when performing sensor alignment (getting in/out or opening/closing doors).

•	Check that radiator grill and sensor cover is not dirty.

•	Check that the wheel alignment is normal.

•	Do not turn OFF the power when performing sensor alignment.

•	Power supplied to the radar sensor must be between 9V~16V.

•	Temperature in the area where sensor alignment is performed must be between -30~60°C.

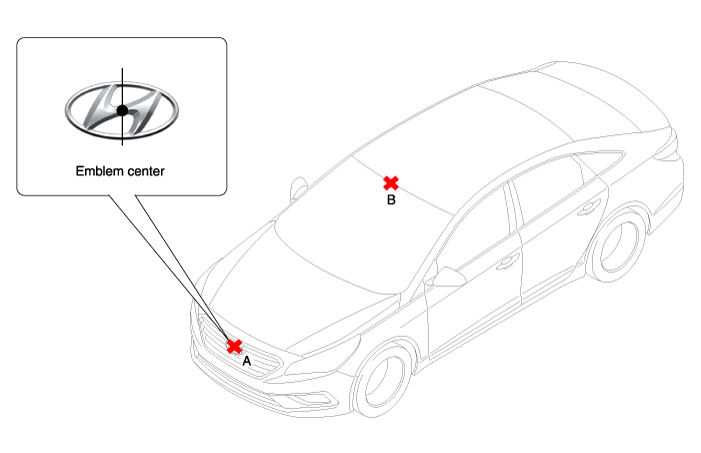

2.	Mark the center point of emblem (A) and the center point on top of wind glass (B).

3.	Connect the ASCC Calibration beam (SST No. : 09964-C1200) to the Tri-Pod (SST No. : 09964-C1300).

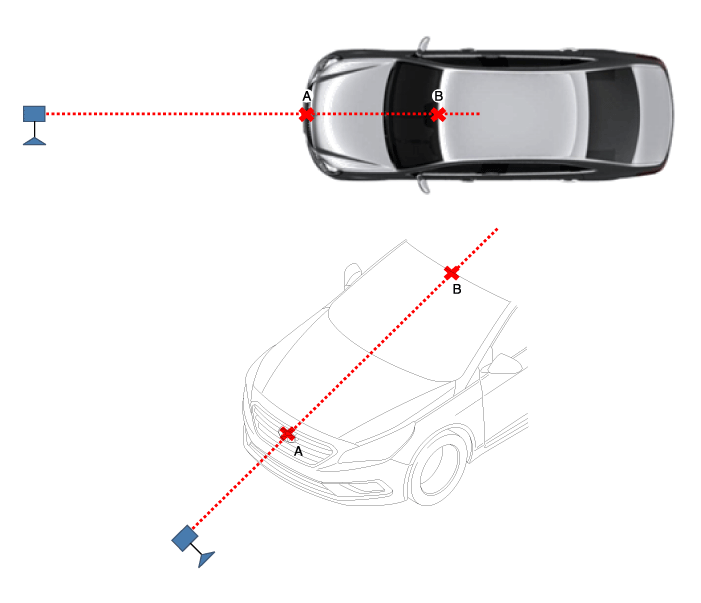

4.	Match the vertical line of laser to (A) and (B) using the ASCC calibration beam pointer.

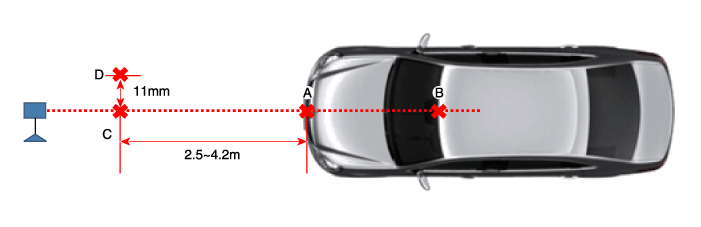

5.	Mark (C) located in 2.5~4.2 m from (A) in front of the vehicle.

6.	Mark (D) at the place which is 11 mm away from (C) to the left in vertical direction.

7.	Disconnect the ASCC Calibration beam (SST No. : 09964-C1200) from the Tri-Pod (SST No. : 09964-C1300).

8.	Connect the reflector(SST No. : 09964-C1100) to the tripod(SST No. : 09964-C1300) and set the reflector center height to 577 mm.

Set the reflector horizontal using the leveler which is built in the tripod(SST No. : 09964-C1300).

Balance the level so that the bubble in the level is set between the spec lines.

10.

Set SST (reflector or tripod) to match the position of SST (reflector) to the position of (D).

Visually check that the reflecting side of the reflector is levelled with the front of the vehicle.

11.

Check again the radar sensor and the surface of front bumper for the following items with the eyes.

•	Make sure that there is no debris, or reflecting object on the surface of the radar.

•	Make sure that there is no debris, or reflecting object on the radiator grill.

12.

Connect the GDS to the DLC of the vehicle and start sensor alignment.

If the engine is running, the vibration may cause inaccurate sensor alignment, so perform sensor alignment in IG ON mode.

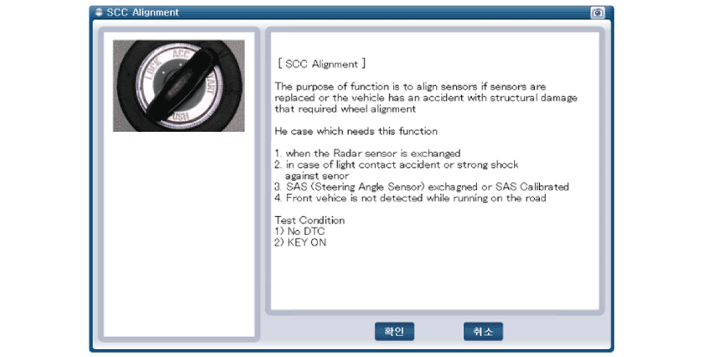

13.	After correctly selecting the vehicle model, select "SCC Alignment" from the auxiliary functions in GDS Menu.

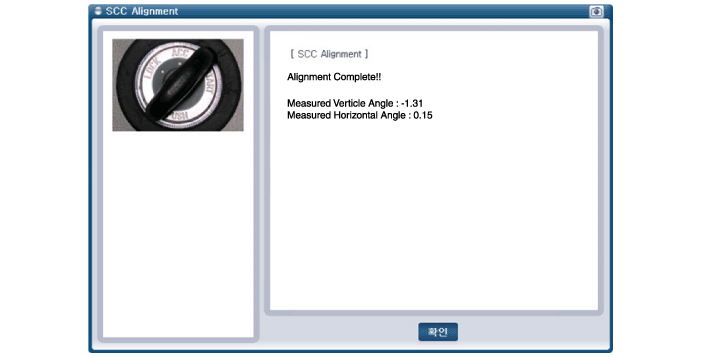

14.	Perform sensor alignment by following the directions shown in the GDS monitor.

15.	In case of sensor alignment failure, check the alignment conditions. Turn the ignition key OFF, then reperform the sensor alignment procedure.
