Hyundai Sonata: Windshield defrosting and defogging / Automatic Climate Control System

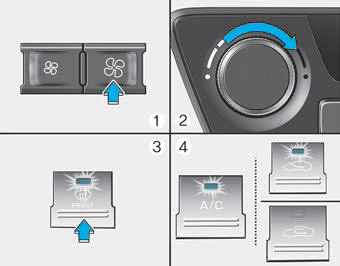

To defog inside windshield

1. Select desired fan speed.

2. Select desired temperature.

3. Press the defroster button ().

4. The outside (fresh) air position will be selected automatically.

If the outside (fresh) air position is not selected automatically, adjust the corresponding button manually.

If the position is selected, lower fan speed is adjusted to a higher fan speed.

To defrost outside windshield

1. Set the fan speed to the highest (extreme right) position.

2. Set the temperature to the extreme hot (HI) position.

3. Press the defroster button ().

4. The outside (fresh) air position will be selected automatically.
