Hyundai Sonata: Automatic climate control system / Automatic Heating and Air Conditioning

The Automatic Climate Control System is controlled by setting the desired temperature.

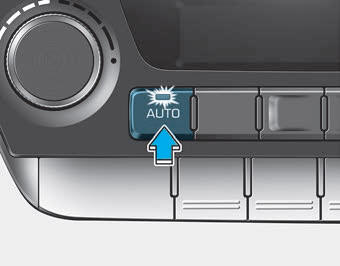

1. Press the AUTO button.

The modes, fan speeds, air intake and air-conditioning will be controlled automatically by the temperature setting you select.

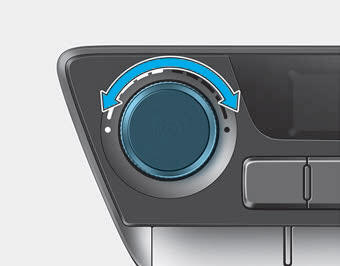

2. Turn the temperature control knob to the desired temperature. If the temperature is set to the lowest setting (Lo), the air conditioning system will operate continuously.

To turn the automatic operation off, select any button of the following:

- Mode selection button
- Front windshield defroster button (Press the button one more time to deselect the front windshield defroster function. The 'AUTO' sign will illuminate on the information display once again.)
- Fan speed control button

The selected function will be controlled manually while other functions operate automatically.

For your convenience and to improve the effectiveness of the climate control, use the AUTO button and set the temperature to 73°F (23°C).

NOTICE

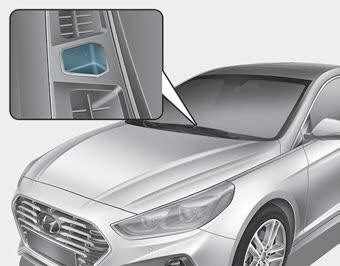

Never place anything near the sensor to ensure better control of the heating and cooling system.

Automatic climate control system
1. Driver’s temperature control knob 2. Passenger’s temperature control knob 3. AUTO (automatic control) button 4. OFF button 5. Fan speed control button 6. Mode selection button 7. SYNC button 8 ...

Manual Heating and Air Conditioning
The heating and cooling system can be controlled manually by pushing buttons other than the AUTO button. In this case, the system works sequentially according to the order of buttons selected. When ...
