Hyundai Sonata LF 2014-2019 Service Manual / Heating, Ventilation and Air Conditioning / Blower / Blower Unit Components and Components Location

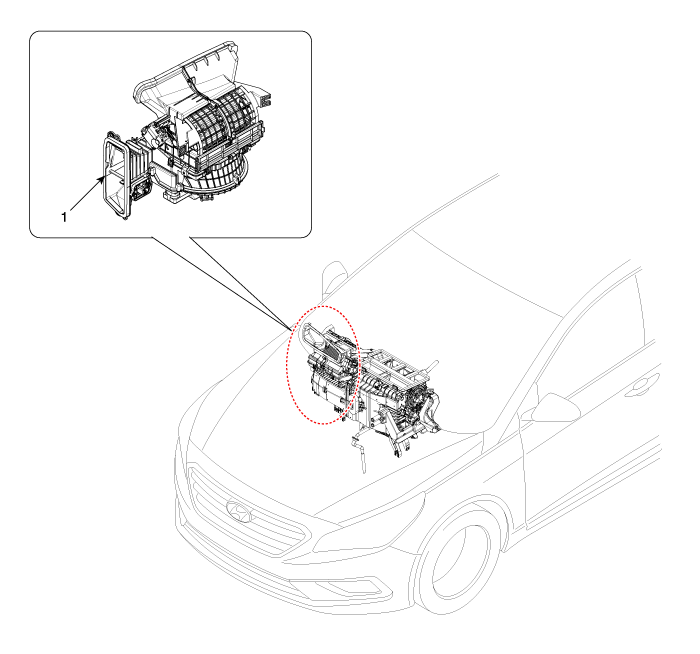

Component Location

1. Blower unit assembly

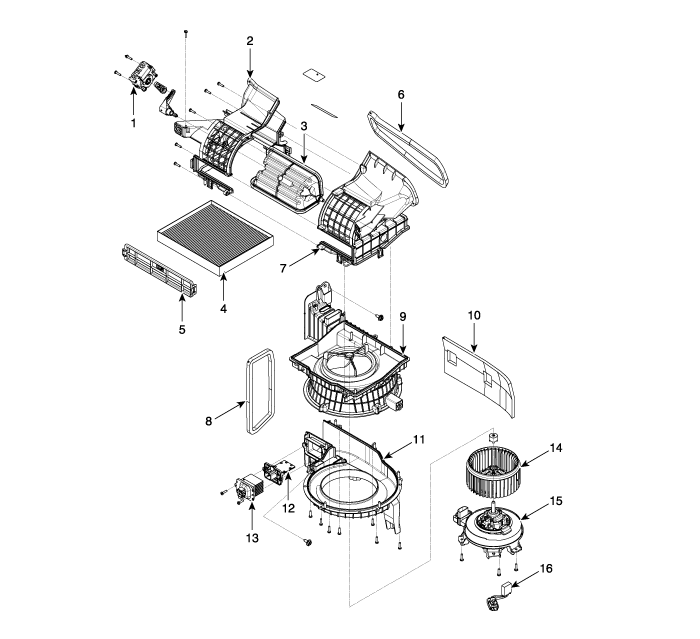

Components

1. Intake actuator
2. Intake case [LH]
3. Intake door assembly
4. Air filter
5. Filter cover assembly
6. Intake inlet seal
7. Intake case [RH]
8. Intake outlet seal
9. Blower upper cover
10. Blower unit pad
11. Blower lower case
12. Resistor
13. Power transistor assembly
14. Blower pan
15. Blower motor assembly
16. Blower motor harness sub assembly

    Blower

    ..

    Blower Unit Repair procedures

    Replacement     When prying with a flat-tip screwdriver or use a prying trim tool, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage...
