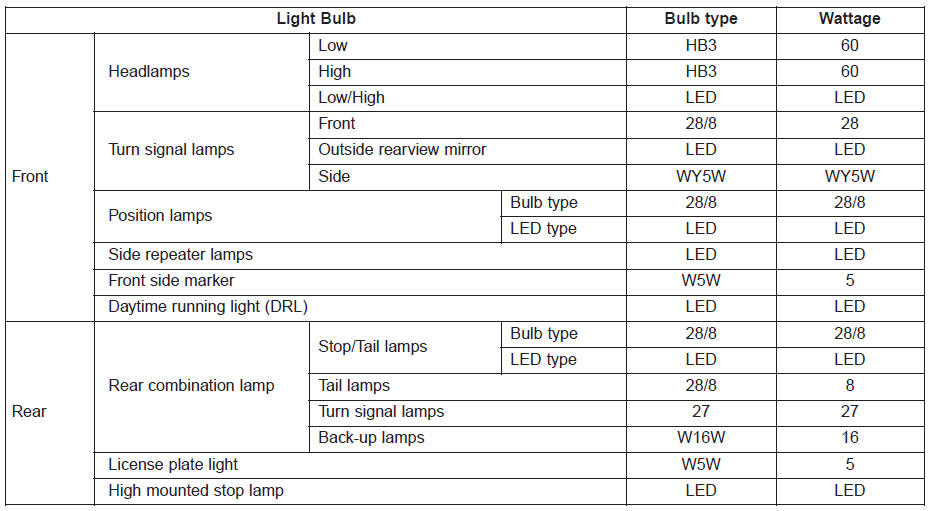

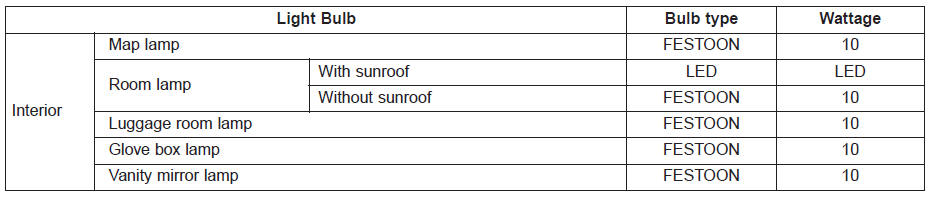

Bulb Wattage

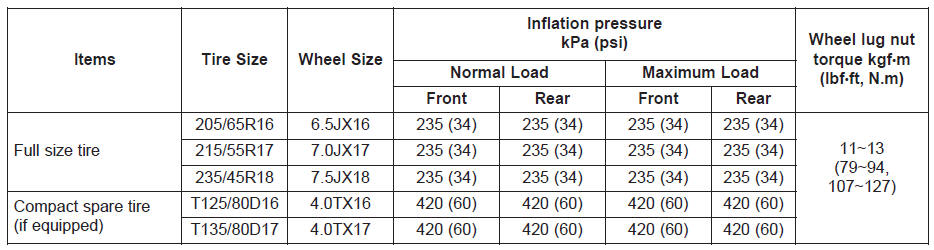

Tires and Wheels
If your vehicle is not equipped with a compact spare tire, your vehicle will be equipped with a Tire Mobility Kit.
CAUTION
When replacing tires, use the same size originally supplied with the vehicle. Using tires of a different size can damage the related parts or not work properly.
NOTICE
Hyundai Sonata LF 2014-2019 Service Manual: Door Scuff Trim Components and Components Location
Component Location
1. Front door scuff trim2. Rear door scuff trim
...
Hyundai Sonata LF 2014-2019 Service Manual: Rear Body Body Repair
* These dimensions indicated in this figure are actual-measurement dimensions. [ Unit : mm (inch) ]
Side outer panel rear cornerSide outer panel rear cornerSide outer panel rear cornerRear combination lamp mounting hole (O6)Rear bumper mounting hole (8.5X8.5)Rear bumper mounting hole (11X13 ...
