Replacement

•	Put on gloves to protect your hands.

•	When prying with a flat-tip screwdriver or use a prying trim tool, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.

•	Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.

•	Take care not to bend or scratch the trim and panels.

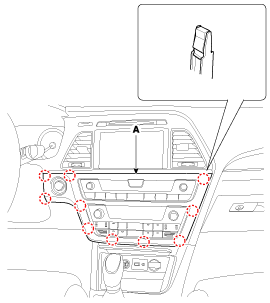

1.	Using a screwdriver or remover, remove the center facia lower panel assembly (A).

2.	Disconnect the A/C & heater controller connectors (A).

3.	Lower the steering wheel.

4.	Using a screwdriver or remover, remove the steering column shroud upper panel (A).

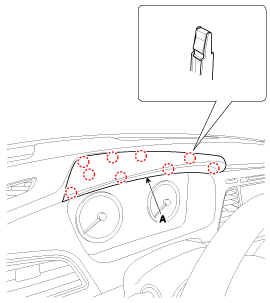

5.	Using a screwdriver or remover, remove the cluster facia upper panel assembly (A).

6.	After loosening the mounting screw, then remove the center facia upper panel assembly (A).

Install in the reverse order of removal.
