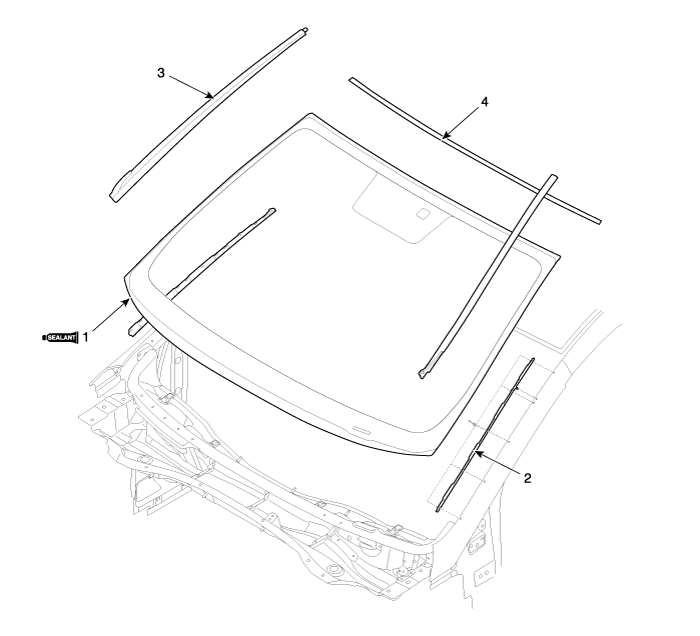

Components

1. Windshield glass
2. Windshield moulding mounting bracket

3. Windshield glass side moulding
4. Windshield glass upper moulding

Repair procedures

Removal • Put on gloves to protect your hands. • Use seat covers to avoid damaging any surfaces. 1. Remove the roof side molding. ...
