Hyundai Sonata: Rear Bumper / Components and Components Location

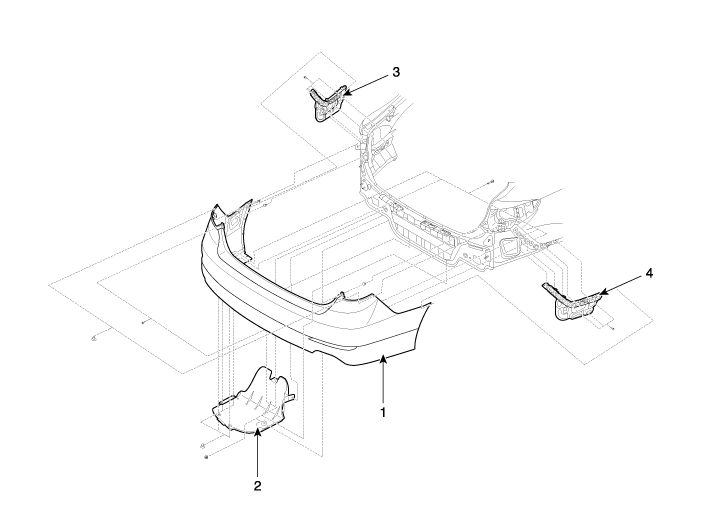

Components

1. Rear bumper cover
2. Rear bumper retainer cover
3. Rear bumper side bracket [LH]
4. Rear bumper side bracket [RH]

Rear Bumper
...

Rear Bumper Cover Components and Components Location
Component Location 1. Rear bumper cover ...
