Hyundai Sonata: Horn / Components and Components Location

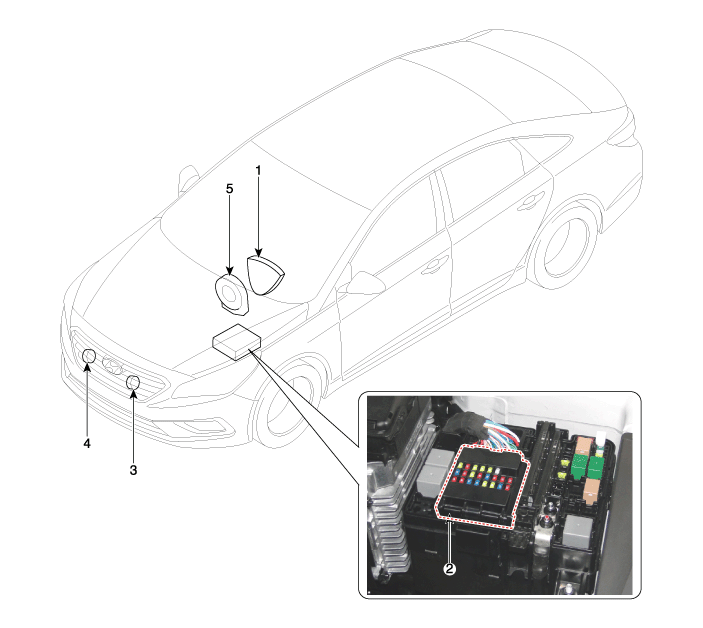

| Component Location |
| 1. Horn switch 2. Horn relay (Built - in Metal Core Block PCB) 3. Horn (Low pitch) | 4. Horn (High pitch) 5. Clock spring |
Horn
...
Repair procedures
Removal
1.
Remove the front bumper cover.
(Refer to Body - "Front Bumper Cover")
2.
Remove the high pitch horn (A) and low pitch horn (B) after
disconnect the horn connector (C) and loosen ...
