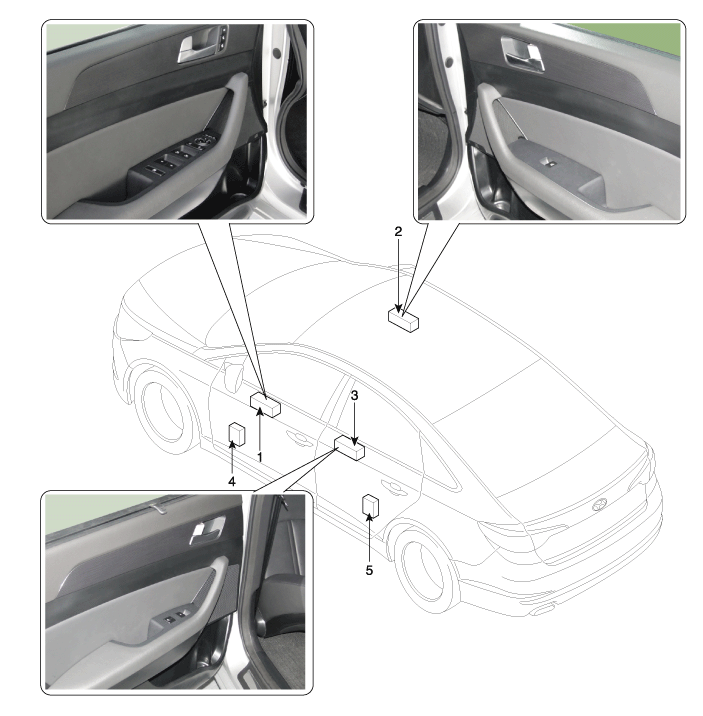

Component Location

1. DDM (Driver Door Module)
2. ADM (Assistant Door Module)
3. RRDM / RLDM (Rear Door Module)
4. Front window motor
5. Rear window motor

    Power Windows

    ..

    Description and Operation

    Function of Safety Power Window When driver door power window auto-up switch is operated, safety function is activated. 1. Safety function condition When detect the force of 100N (using the 10N/mm spring) during the window rising, window is reversed...
