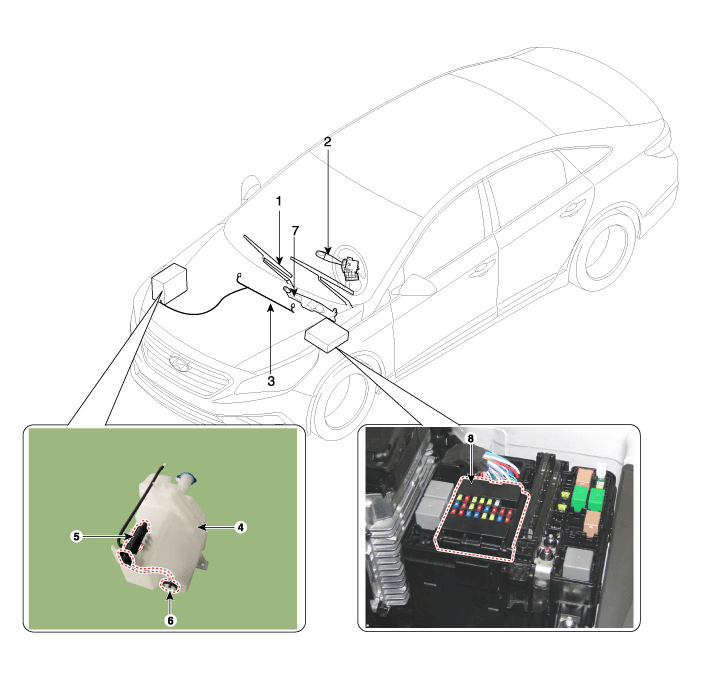

Component Location

1. Windshield wiper arm & blade
2. Wiper & washer switch
3. Windshield washer hose & nolzzle
4. Washer reservoir

5. Washer motor
6. Washer fluid level sensor
7. Wiper motor & linkage assembly
8. Wiper High/Low relay (Built - in Metal core block PCB)

Windshield Wiper/Washer

...

Windshield Wiper-Washer Switch Repair procedures

Removal 1. Disconnect the negative (-) battery terminal. 2. If it is necessary to remove multifunction switch assembly, remove the steering wheel. (Steering System - "Steering Wheel") 3. ...
