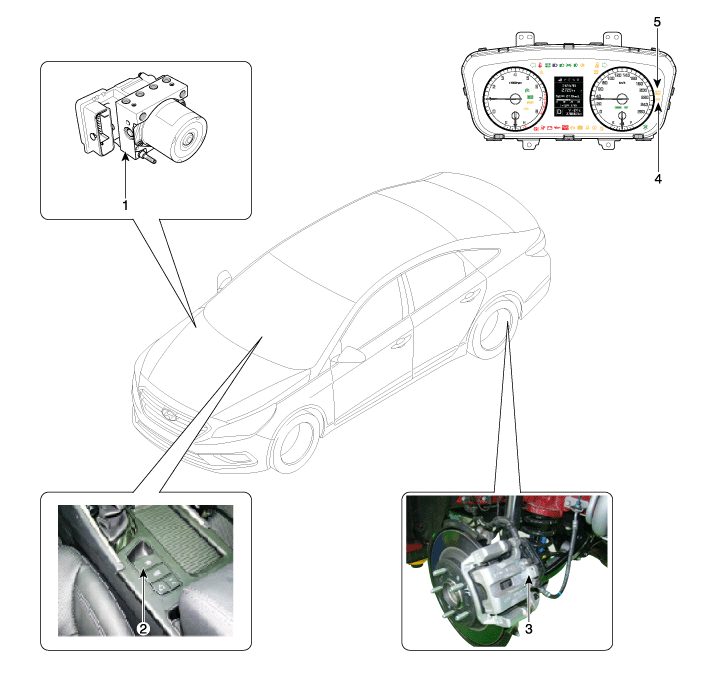

Components

1. VDC control module
2. EPB switch
3. Brake caliper
4. EPB warning lamp
5. AUTO HOLD lamp

Parking Brake Assembly Repair procedures
Removal Parking Brake Pedal [Foot type] 1. Remove the crash pad lower panel. (Refer toBody - "Crash Pad") 2. Remove the junction box. (Refer to Body Electrical System - "Fuses and Relays") ...

Electric Parking Brake (EPB) Description and Operation
Description The EPB is an electronic parking brake. The EPB is different from existing parking systems which operated with the brake pedal or the lever type. The EPB system sends the signal t ...
