Hyundai Sonata: Trunk / Emergency trunk safety release

Your vehicle is equipped with an Emergency Trunk Safety Release lever located inside the trunk. When someone is inadvertently locked in the trunk, the trunk can be opened by moving the lever in the direction of the arrow and pushing the trunk open.

WARNING

Inside the vehicle

When you can not unlock the trunk due to battery discharge or other reasons, you can unlock the trunk inside the vehicle.

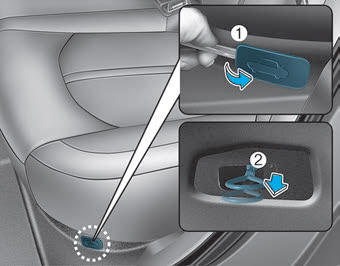

Open the cable cover(1) under the rear seat with a mechanical key and pull the cable (2) for unlocking the trunk.

Trunk
Opening the trunk 1. Make sure the shift lever is in P (Park). 2. Then do one of the following : - Press the button (1) on the trunk handle after locking or unlocking the door by remote key or smart ...

Smart Trunk
On a vehicle equipped with a smart key, the trunk can be opened using the Smart Trunk system. ...
