Hyundai Sonata LF 2014-2019 Service Manual / Body (Interior and Exterior) / Front Seat Belt / Front Seat Belt Buckle Components and Components Location

Component Location

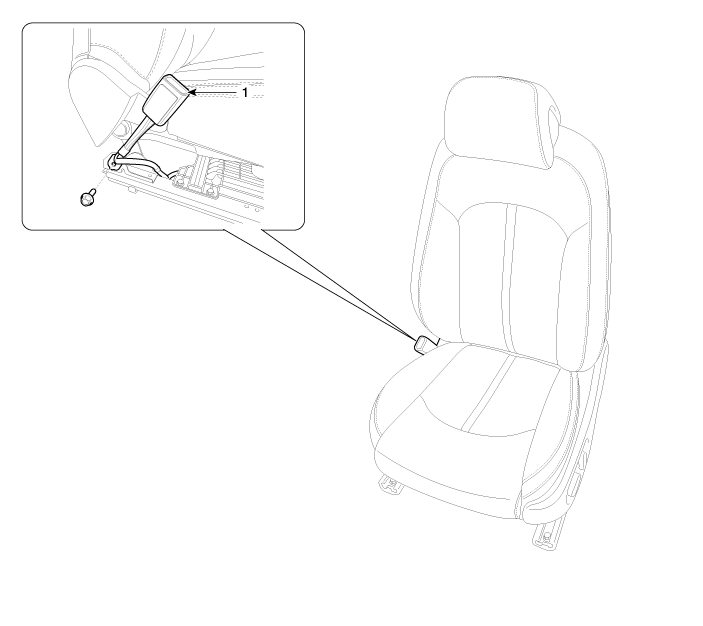

1. Front seat belt buckle


Height Adjust Repair procedures
Replacement 1. Remove the front seat belt upper anchor. (Refer to Front Seat Belt - "Front Seat Belt Retractor") 2. After loosening the mounting bolts, then remove the height adjust (A). ...

Front Seat Belt Buckle Repair procedures
Replacement 1. Remove the front seat assembly. (Refer to Front Seat - "Front Seat Assembly") 2. Remove the front seat belt buckle connector wiring harness (A). 3. After loosening the moun ...
