Hyundai Sonata LF 2014-2019 Service Manual / Body Electrical System / Windshield Wiper/Washer / Front Wiper Motor Components and Components Location

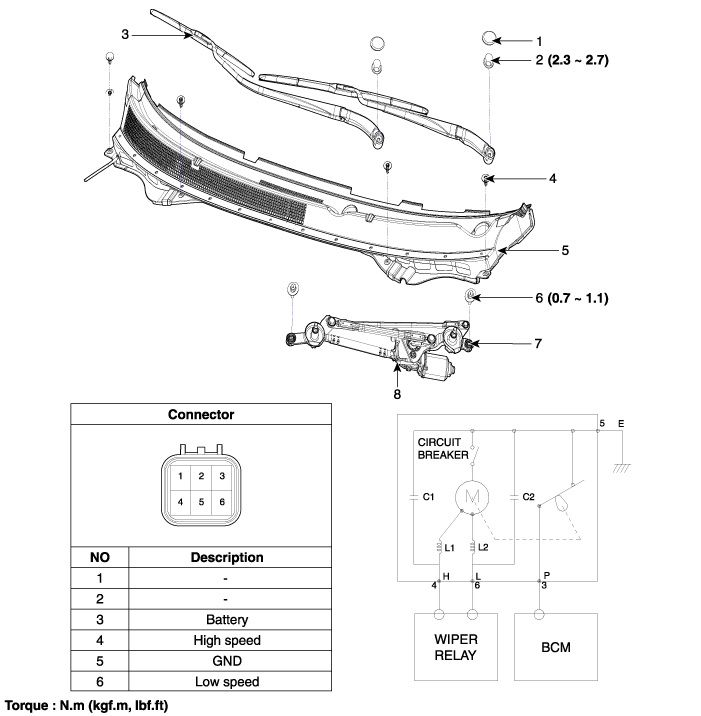

Component Location

1. Cap
2. Nut
3. Wiper arm & blade
4. Rivet
5. Cowl top cover
6. Bolt
7. Wiper motor & linkage assembly
8. Wiper motor connector

Windshield Wiper-Washer Switch Repair procedures
Removal 1. Disconnect the negative (-) battery terminal. 2. If it is necessary to remove multifunction switch assembly, remove the steering wheel. (Steering System - "Steering Wheel") 3. ...

Front Wiper Motor Repair procedures
Removal 1. Disconnect the negative (-) battery terminal. 2. If necessary, release the wiper blade fixing clip by pulling up and remove the wiper blade from the inside radius of wiper arm. 3 ...
