Hyundai Sonata: Fuses / Fuse/Relay Panel Description

Hyundai Sonata LF 2014-2019 Owners Manual / Maintenance / Fuses / Fuse/Relay Panel Description

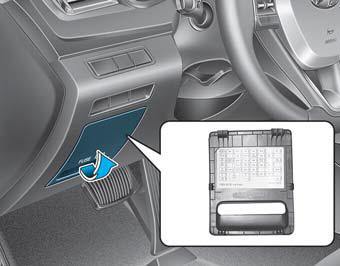

Instrument panel fuse panel

Inside the fuse/relay box cover, you can find the fuse/relay label describing fuse/relay name and capacity.

Information

Not all fuse panel descriptions in this manual may be applicable to your vehicle; the information is accurate at the time of printing. When you inspect the fuse box on your vehicle, refer to the fuse box label.

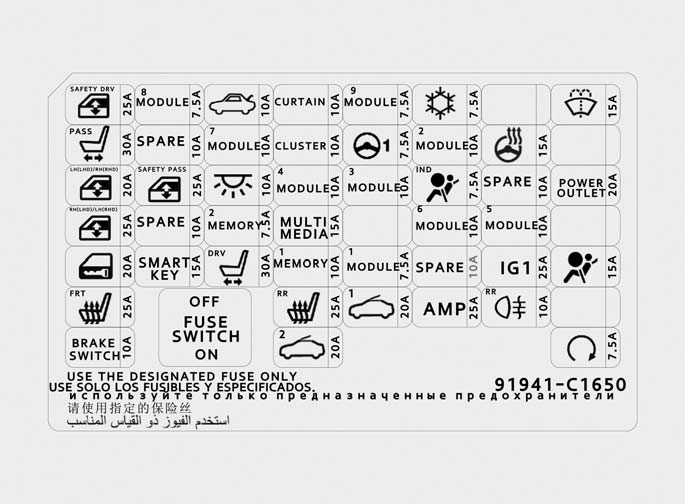

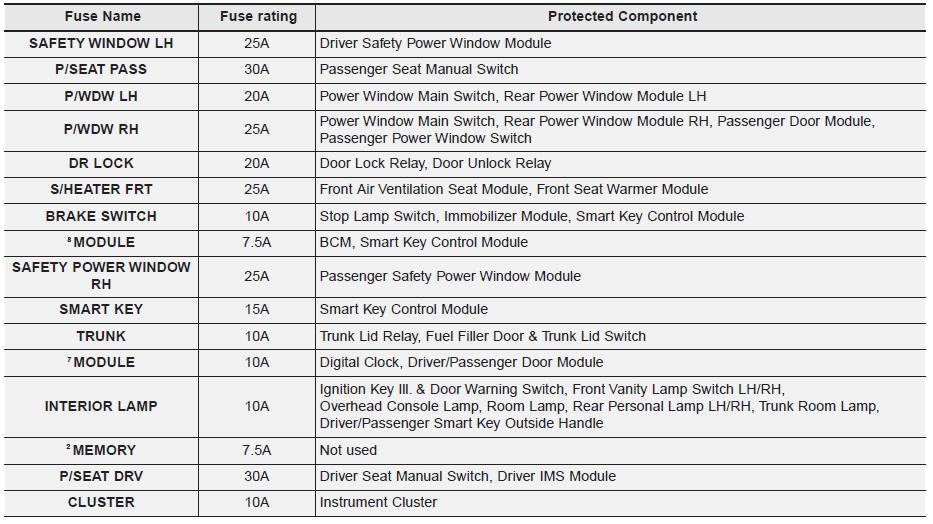

Instrument panel fuse panel

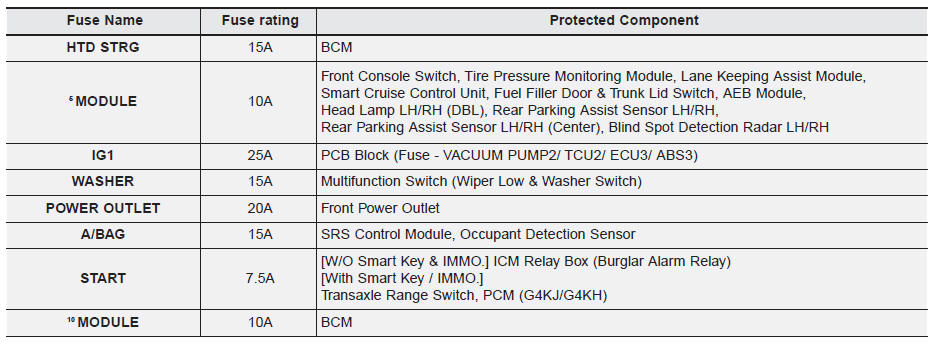

Instrument panel fuse panel

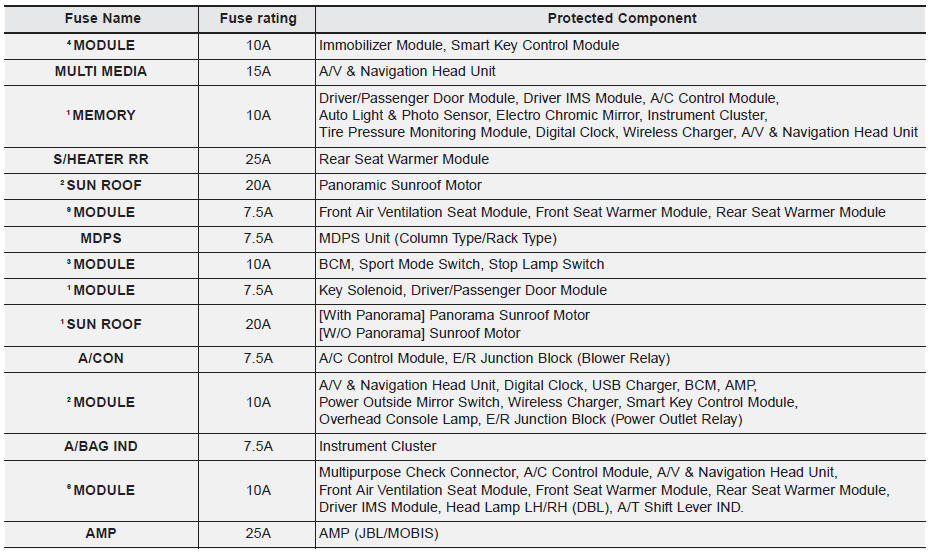

Instrument panel fuse panel

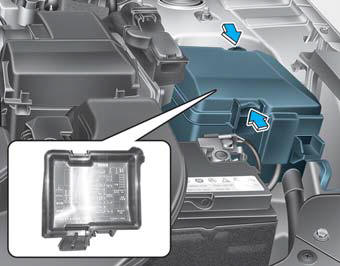

Engine compartment fuse panel

Inside the fuse/relay box cover, you can find the fuse/relay label describing fuse/relay name and capacity.

Information

Not all fuse panel descriptions in this manual may be applicable to your vehicle; the information is accurate at the time of printing. When you inspect the fuse panel in your vehicle, refer to the fuse panel label.

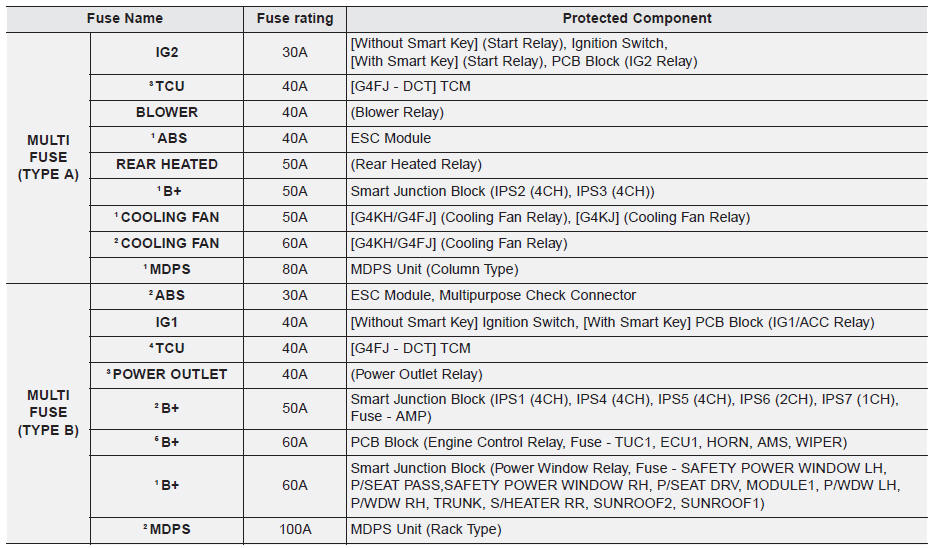

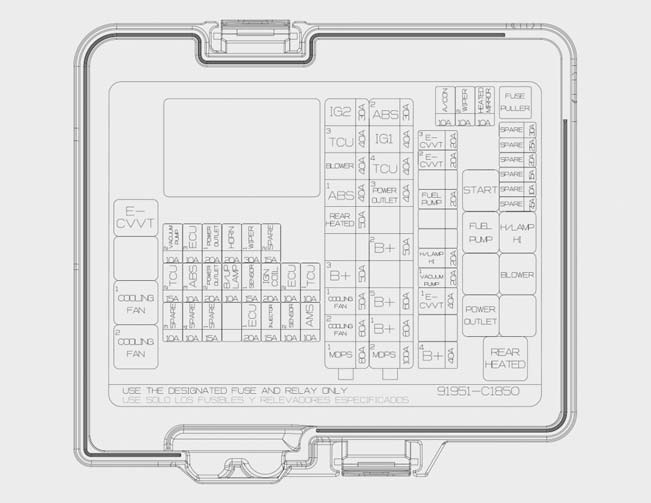

Engine compartment main fuse panel

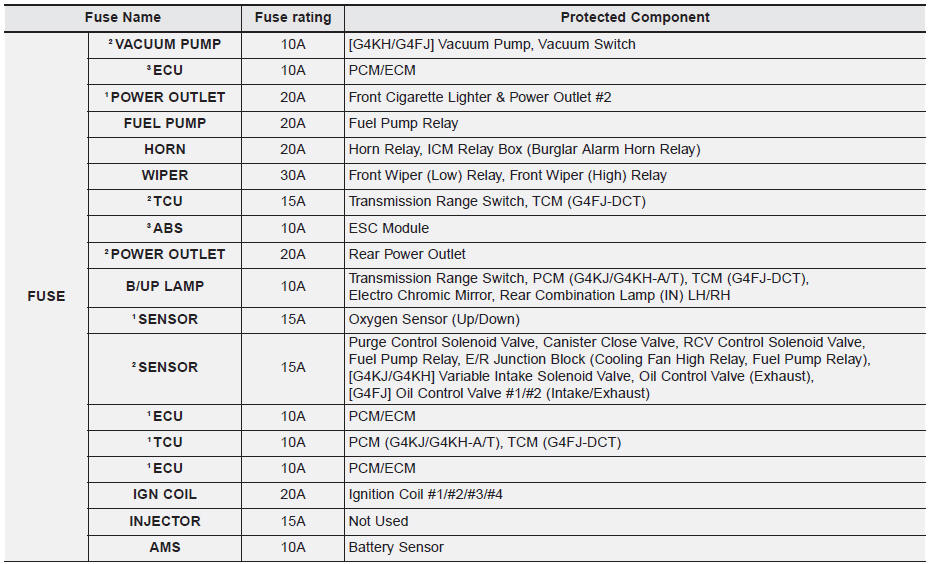

Engine compartment main fuse panel

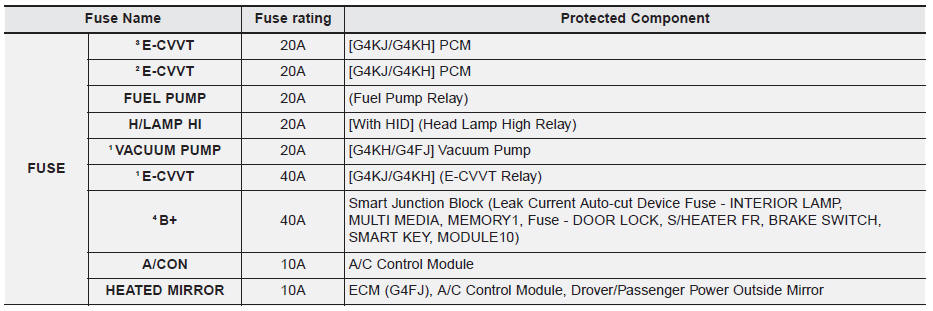

Engine compartment main fuse panel - PCB Block

Engine Compartment Panel Fuse Replacement
1. Turn the engine off. 2. Turn all other switches OFF. 3. Remove the fuse panel cover by pressing the tap and pulling up. 4. Check the removed fuse; replace it if it is blown. To remove or insert th ...

Light Bulbs
Consult an authorized HYUNDAI dealer to replace most vehicle light bulbs. It is difficult to replace vehicle light bulbs because other parts of the vehicle must be removed before you can get to the ...
