Hyundai Sonata LF: Dual Clutch Transmission Control System / Gear Actuator Assembly Components and Components Location

Hyundai Sonata LF 2014-2019 Service Manual / DCT (Dual Clutch Transmission) System / Dual Clutch Transmission Control System / Gear Actuator Assembly Components and Components Location

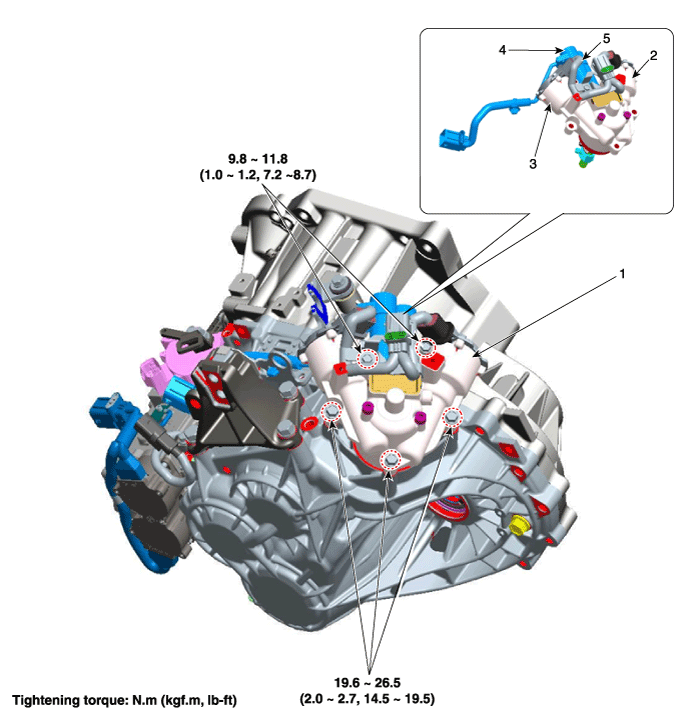

Components

1. Gear actuator assembly
2. Shift motor (Even)
3. Shift motor (Odd)
4. Select solenoid (Odd)
5. Select solenoid (Even)
