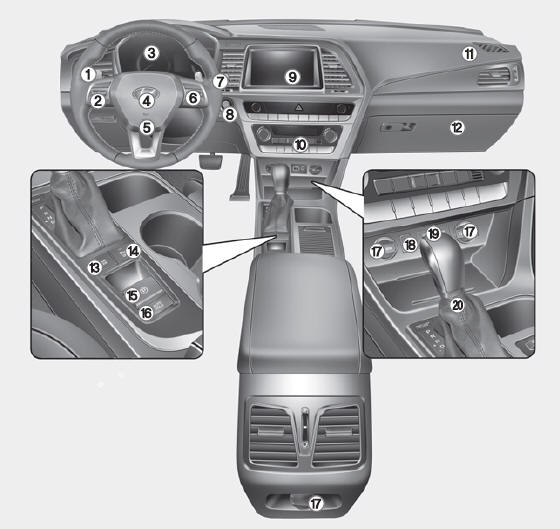

Hyundai Sonata: Your vehicle at a glance / Instrument panel overview

1. Light control/Turn signals
2. Steering wheel audio controls*/ Bluetooth® wireless technology hands-free controls
3. Instrument cluster
4. Driver's front air bag
5. Horn
6. Cruise controls
7. Wiper/Washer
8. Engine Start/Stop button/ Key ignition switch
9. Audio system/Navigation system
10. Climate control system
11. Passenger's front air bag
12. Glove box
13. Drive mode integrated control system
14. Rear parking assist system
15. EPB (Electronic Parking Brake)
16. AUTO HOLD
17. Power outlet
18. Wireless cellular phone charging system
19. AUX, USB and iPod® port
20. Automatic transmission/Dual clutch transmission shifter

Interior overview
1. Door lock/unlock button 2. Driver position memory system 3. Side view mirrors control switch 4. Central door lock switch 5. Power window switches 6. Power window lock switch 7. Hood release lever ...

Engine compartment
1. Engine coolant reservoir 2. Radiator cap 3. Brake fluid reservoir 4. Air cleaner 5. Engine oil dipstick 6. Engine oil filler cap 7. Windshield washer fluid reservoir 8. Fuse box 9. Battery ...
