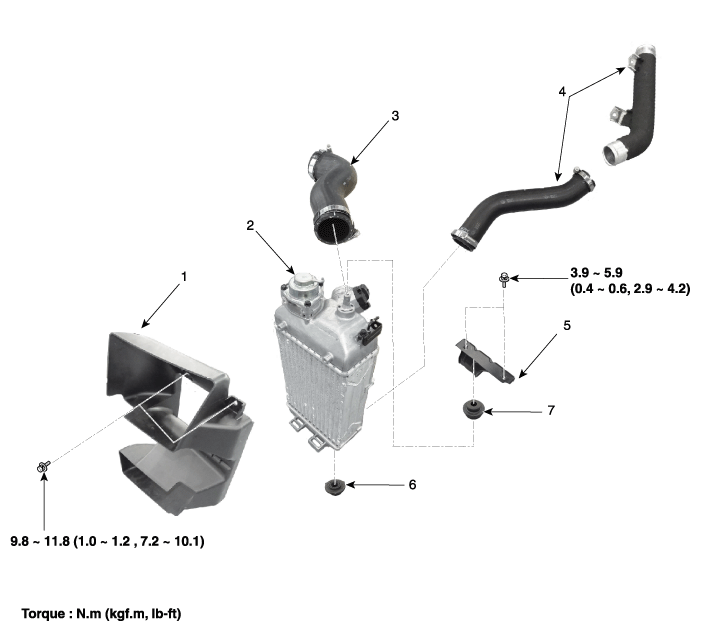

Components

1. Intercooler air guard
2. Intercooler
3. Intercooler outlet hose
4. Intercooler inlet hose & pipe

5. Intercooler upper mounting bracket
6. Intercooler lower mounting insulator
7. Intercooler upper mounting insulator

Exhaust Manifold Repair procedures

Removal and Installation 1. Remove the engine cover. 2. Disconnect the battery negative terminal. 3. Remove the air cleaner assembly. (Intake And Exhaust System - "Air Cleaner") 4. Re ...

Intercooler Repair procedures

Removal and Installation 1. Disconnect the battery negative terminal. 2. Remove the intercooler inlet hoses & pipe (A). Tightening torque Bolt : 19.6 ~ 26.4 N.m (2.0 ~ 2.7 kgf.m, 14 ...
