Hyundai Sonata: Light Bulbs / Interior Light Bulb Replacement

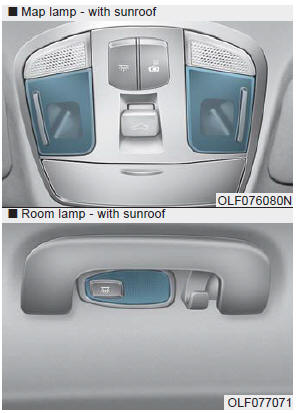

Map lamp and Room lamp
.jpg)
If the LED lamp does not operate, have the vehicle checked by an authorized HYUNDAI dealer.
Map lamp, Room lamp, Vanity mirror lamp and Luggage room lamp
.jpg)
1. Using a flat-head screwdriver, gently pry the lens from the interior light housing.
2. Remove the bulb by pulling it straight out.
3. Install a new bulb in the socket.
4. Align the lens tabs with the interior light housing notches and snap the lens into place.
If the lamps do not operating, have the vehicle checked by an authorized HYUNDAI dealer.
NOTICE
Use care not to dirty or damage lenses, lens tabs, and plastic housings.
