Hyundai Sonata: Ignition Switch / Key Ignition Switch

WARNING

NEVER turn the ignition switch to the LOCK or ACC position while the vehicle is in motion except in an emergency. This will result in the engine turning off and loss of power assist for the steering and brake systems. This may lead to loss of directional control and braking function, which could cause an accident.

Before leaving the driver’s seat, always make sure the shift lever is in P (Park) position, apply the parking brake, and turn ignition switch to the LOCK position.

Unexpected vehicle movement may occur if these precautions are not followed.

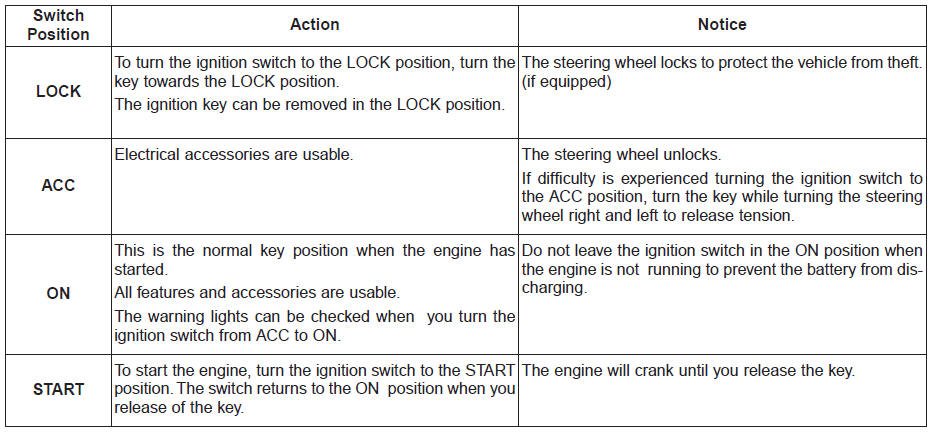

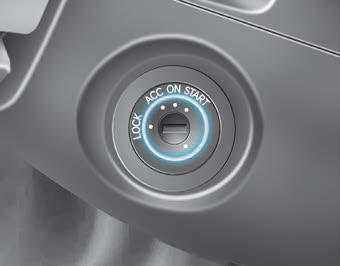

Key ignition switch positions

Starting the engine

WARNING

Always wear appropriate shoes when operating your vehicle.

Unsuitable shoes, such as high heels, ski boots, sandals, flipflops, etc., may interfere with your ability to use the brake and accelerator pedals.

1. Make sure the parking brake is applied.

2. Make sure the shift lever is in P (Park).

3. Depress the brake pedal.

4. Turn the ignition switch to the START position. Hold the key (maximum of 10 seconds) until the engine starts and release it.

Information

NOTICE

To prevent damage to the vehicle:

Ignition Switch
WARNING To reduce the risk of SERIOUS INJURY or DEATH, take the following precautions: NEVER allow children or any person who is unfamiliar with the vehicle to touch the ignition switch or related ...

Engine Start/Stop Button
Whenever the front door is opened, the Engine Start/Stop button will illuminate and will go off 30 seconds after the door is closed. WARNING To reduce risk of serious injury or death, NEVER allow ch ...
