Hyundai Sonata: Maintenance / Parking Brake
Checking the Parking Brake

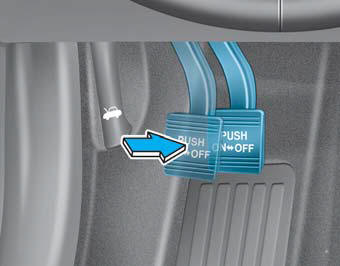

Foot type
.jpg)
Check whether the stroke is within specification when the parking brake pedal is depressed with 44 lb (20 kg, 196 N) of force. Also, the parking brake alone should securely hold the vehicle on a fairly steep grade. If the stroke is more or less than specified, have the parking brake adjusted by an authorized HYUNDAI dealer.
Stroke : 3 notch
Washer Fluid
Checking the Washer Fluid Level
Check the fluid level in the washer fluid reservoir and add fluid if necessary.
Plain water may be used if washer fluid is not available. However, use washer solvent ...
Air Cleaner
Filter Replacement
The air cleaner filter can be cleaned for inspection using compressed air. Do
not attempt to wash or to rinse it, as water will damage the filter. If soiled,
the air cleaner filt ...
