Hyundai Sonata LF 2014-2019 Service Manual / Body Electrical System / Power Windows / Power Window Motor Components and Components Location

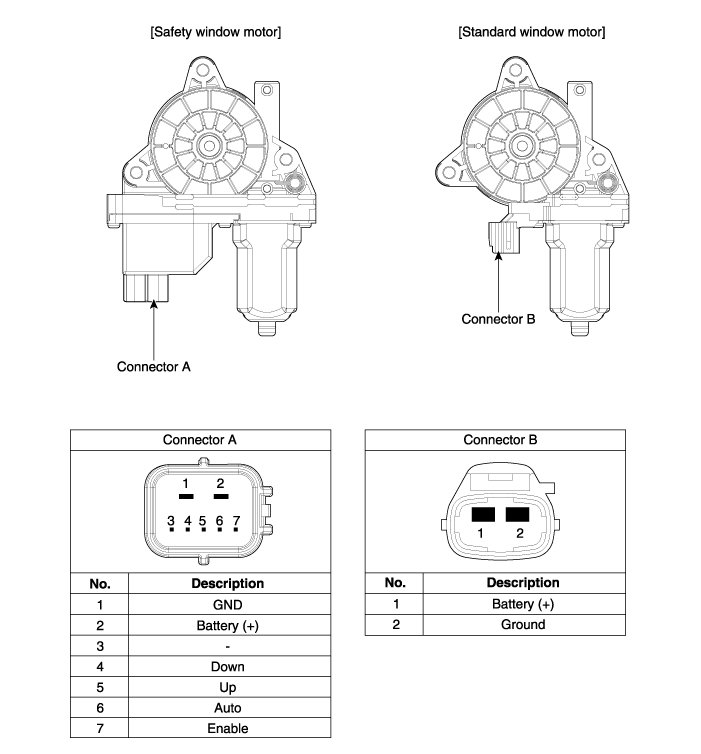

Components

Description and Operation
Function of Safety Power Window When driver door power window auto-up switch is operated, safety function is activated. 1. Safety function condition When detect the force of 100N (using the 10N/ ...

Power Window Motor Schematic Diagrams
Circuit Diagram ...
