Hyundai Sonata: Fuses And Relays / Relay Box (Passenger Compartment) Repair procedures
1. |
Be sure there is no play in the fuse holders, and that the fuses are held securely. |
2. |
Are the fuse capacities for each circuit correct? |
3. |
Are there any blown fuses?
If a fuse is to be replaced, be sure to use a new fuse of the
same capacity. Always determine why the fuse blew first and completely
eliminate the problem before installing a new fuse. |
|
1. |
The body electrocal system can be quickly diagnosed failed parts with vehicle diagnostic system (GDS).
The diagnostic system (GDS) provides the following information.
(1) |
1) Self diagnosis : Checking the failure code (DTC) and display |
(2) |
2) Current data : Checking the system input/output data state |
(3) |
3) Actuator test : Checking the system operation condition |
(4) |
4) Additional function : Other controlling such as he system option and zero point adjustment |
|
2. |
Select the "Car Model" and the system to be checked in order to check the vehicle with the tester. |
3. |
Select the "Smart Junction Block (SJB)". |
4. |

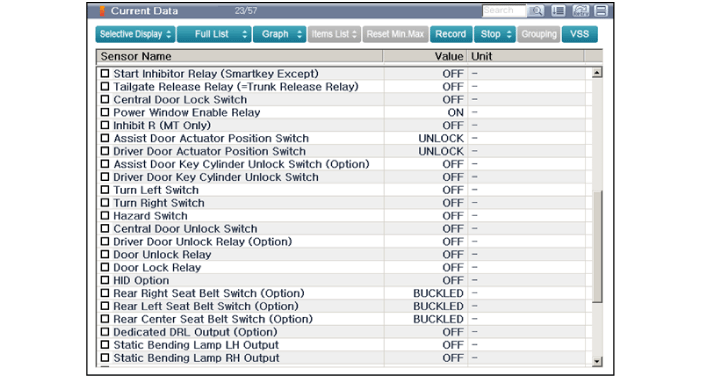

Select the "Current Data" menu to search the current state of the input/output data.
The input/output data for the sensors corresponding to the Smart Junction Block (SJB) can be checked.
|
5. |

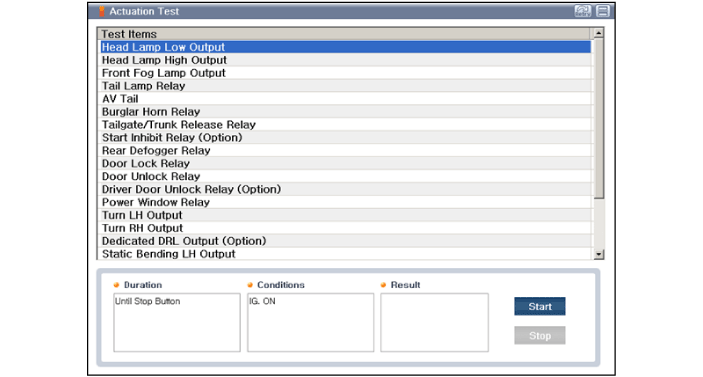

If you will check the power door lock operation forcefully, select "Actuation Test".
|
6. |

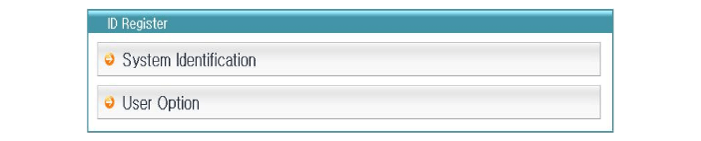

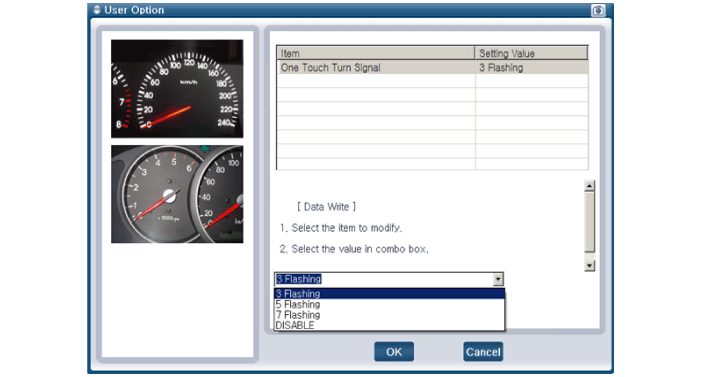

If you want to change user option, select "User Option".

|
1. |
Disconnect the negative (-) battery terminal. |
2. |
Remove the crash pad lower panel.
(Refer to Body - "Crash Pad Lower Panel") |
3. |
Disconnect the connectors from the fuse side of the smart junction block. |
4. |
Remove the smart junction block (A) after loosening the mounting nuts.
|
5. |
Disconnect the connectors from the back side of the smart junction box. |
1. |
Install the smart junction box. |
2. |
Install the crash pad lower panel. |
3. |
Connect the negative (-) battery terminal. |
4. |
Check that all system operates normally. |
