Hyundai Sonata: Ignition Switch Assembly / Repair procedures
Hyundai Sonata LF 2014-2019 Service Manual / Body Electrical System / Ignition Switch Assembly / Repair procedures
| Replacement |
| 1. |
Disconnect the negative (-) battery terminal. |
| 2. |
Remove the crash pad lower panel.
(Refer to Body - "Crash Pad") |
| 3. |
Remove the steering column upper & Lower shroud. |
| 4. |
Remove the ignition switch (A) and disconnecting the Key Warning / immobilizer connector.
|
| 5. |
If it is necessary to remove the key lock cylinder (A),
remove the key lock cylinder (A) after pushing lock pin (B) with key
ACC.
|
| 6. |
Installation is the reverse of removal procedure. |
| Inspection |
| 1. |

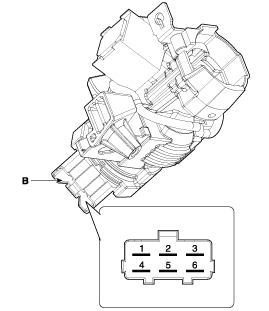

Disconnect the ignition switch connector (A) and key warning switch connector (B) from under the steering column.
|
| 2. |

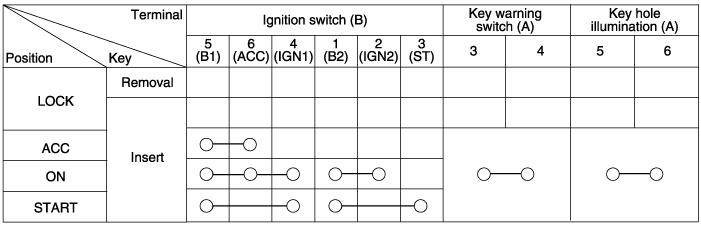

Check for continuity between the terminals. |
| 3. |
If continuity is not specified, replace the switch.
|
