Components

Hazard Lamp Switch Repair procedures

Inspection 1. Check for continuity between terminals. If the continuity is not as specified, replace the hazard lamp switch. AVN typeAudio typeNoDescription NoDescription 1GND1GND 2CAN _ Hig ...

Rheostat Repair procedures

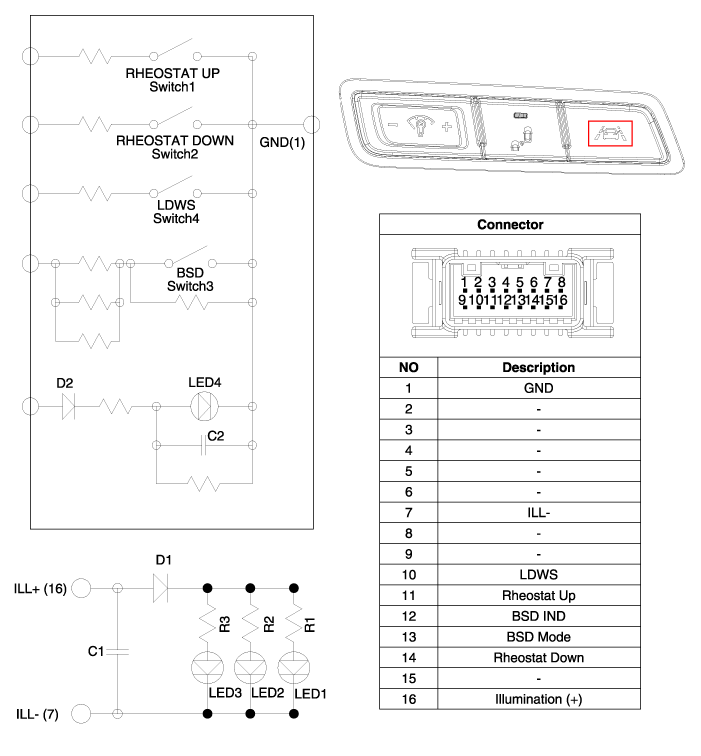

Inspection 1. Disconnect the negative (-) battery terminal. 2. Remove the crash pad lower panel. (Refer to Body - "Crash Pad Lower Panel") 3. Remove the lower crash pad switch assembly (A ...
