Hyundai Sonata: Panorama Sunroof / Schematic Diagrams
Hyundai Sonata LF 2014-2019 Service Manual / Body Electrical System / Panorama Sunroof / Schematic Diagrams

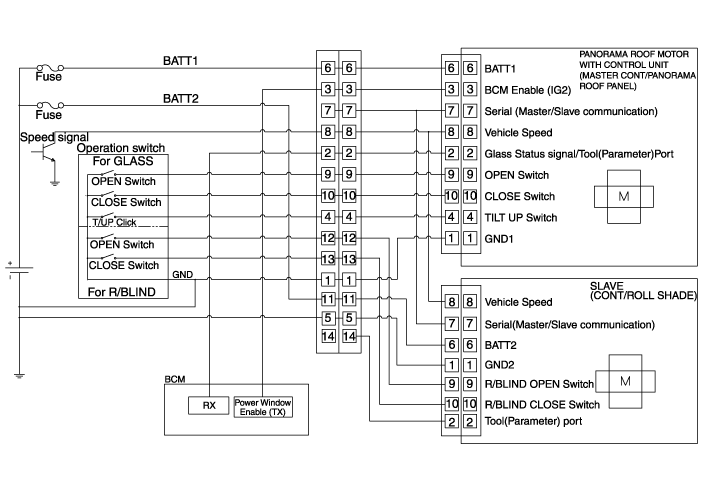

| Circuit Diagram |
| No | Sunroof wiring connector (Vehicle side) | Sunroof wiring connector (Motor) | Panorama glass motor (Master) | Blind motor (Slave) |
|
|
|
| |
| 1 | GND 1 | GND 1 | GND 2 | |
| 2 | Glass statussignal / tool (parameter) | Glass status signal / tool (parameter) | Blind signal | |
| 3 | BCM Enable | BCM Enable | - | |
| 4 | Tilt up switch | Tilt up switch | - | |
| 5 | GND 2 | - | - | |
| 6 | BATT 1 | BATT 1 | BATT 2 | |
| 7 | - | - | - | |
| 8 | Vehicle speed signal | Vehicle speed signal | Vehicle speed signal | |
| 9 | Glass open switch | Glass open switch | Blind open switch | |
| 10 | Glass close switch | Glass close switch | Blind close switch | |
| 11 | BATT 2 | |||
| 12 | Blind open switch | |||
| 13 | Blind close switch | |||
| 14 | Blind signal | |||
Components and Components Location
Component Location
1. Panorama sunroof2. Panorama sunroof switch3. Panorama sunroof motor & controller4. Roller blind motor & slave controller
...
Panorama Sunroof Switch Components and Components Location
Components
...
