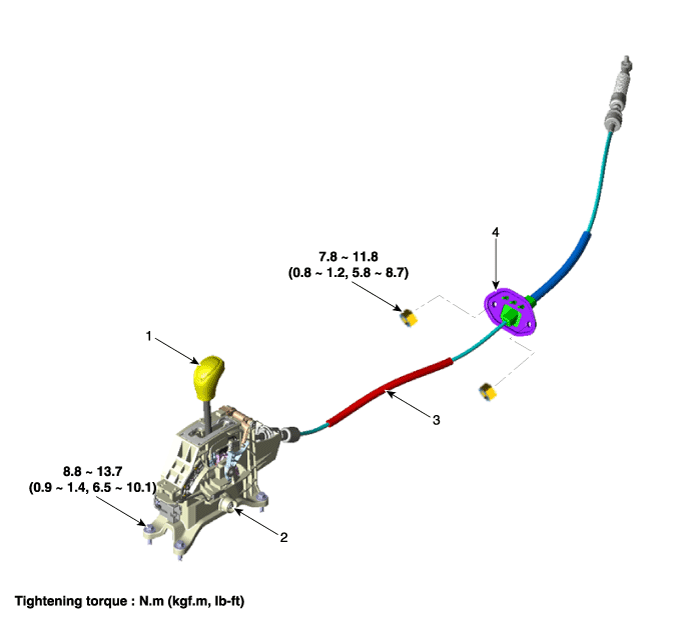

Components (1)

1. Shift lever knob
2. Shift lever assembly
3. Shift cable
4. Shift cable retainer

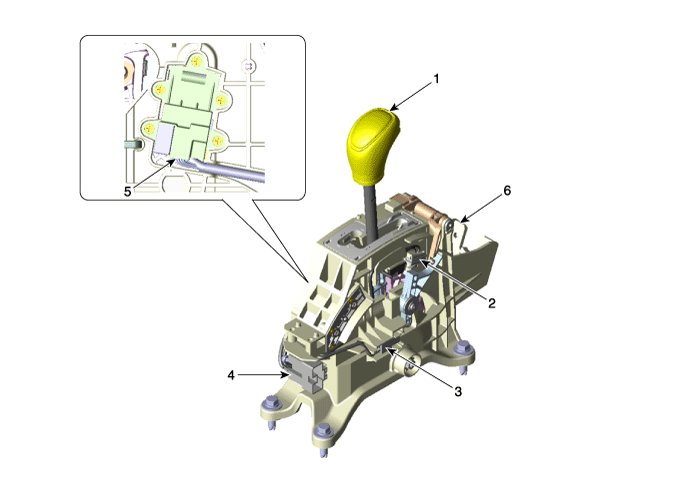

Components (2)

1. Shift lever assembly
2. P position switch
3. shift lock solenoid
4. Main connector
5. Manual mode siwtch housing

    Inhibitor Switch Repair procedures

    Inspection     • Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage...

    Shift Lever Schematic Diagrams

    C..
