Special Service Tools

Tool (Number and Name)	Illustration	Use
09200-3N000 Engine support fixture (Beam)		Removal and installation of the transaxle. Use this beam (SST No. : 09200-3N000) with the supporter (SST No. : 09200-2S000). ?Permit operating with 09200-38001. ?Refer to the engine support fixture assembly drawing below.
09200-2S000 Engine support fixture (Supporter)		Removal and installation of the transaxle. Use this beam (SST No. : 09200-38001/3N000) with the supporter (SST No. : 09200-2S000). ?Refer to the engine support fixture assembly drawing below.
09430-C1190 Oil seal installer		Installation of the differential oil seal in the transaxle case and housing side. [Using with bar (SST No.09231-H1100)]
09231-H1100 Bar		Installation of the differential oil seal in the transaxle case and housing side. [Using with oil seal installer (SST No.:09430-C1190)]
09480-A3800 Inhibitor switch neutral fixed pin		When installing the manual control lever on the inhibitor switch, used to align the neutral position.
09430-C1180 Dual clutch remover		Used for removing dual clutch assembly
09430-2A240 Dual clutch Installer		Used for installing dual clutch assembly
09430-C1300 Clutch abrasion compensation tool		Used for adjusting clutch actuator Used with the Clutch actuator adjustment jig (09430-C1302)
09430-C1302 Actuator fixing jig & Motor shaft reset tool		Used for adjusting clutch actuator Used with the Clutch actuator adjuster (09430-C1300)
09430-A5100 Clutch engagement frok fixing jig		Used for removing clutch actuator assembly

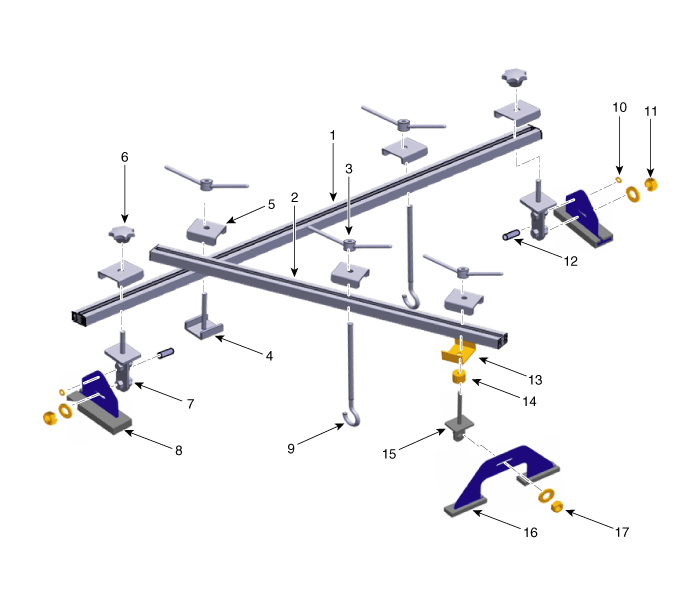

? Engine support fixture special tool assembly drawing

1. 09200-3N000(Main bar)
2. 09200-3N000(Sub bar)
3. 09200-3N000(Handle)
4. 09200-3N000(Stopper)
5. 09200-3N000(Stopper)
6. 09200-3N000(Knobe)
7. 09200-3N000(Adapter)
8. 09200-2S000(Supporter)
9. 09200-3N000(Hanger)

10. 09200-3N000(Clip)
11. 09200-3N000(Nut)
12. 09200-3N000(Pin)
13. 09200-2S000(Stopper)
14. 09200-2S000(Spacer)
15. 09200-2S000(Adapter)
16. 09200-2S000(Supporter)
17. 09200-2S000(Nut)

Specifications

Specifications Transmission typeD7UF1Egnine typeGasoline 1.6 T-GDITransmission fluidQuantity1.9 ~ 2.0 LSpecified lubricantAPI Service GL-4, SAE 70W• Recommended oil - SHELL: SPIRAX S6 GHME 7 ...

Troubleshooting

Troubleshooting Trouble symptomProbable causeRemedyDisplayed the warning lamp "E"(Driving is only possible with 1/ R gear)Not performed DCT learningPerform the DCT manual learning procedure.Impos ...
