Hyundai Sonata: SRSCM / SRS Control Module (SRSCM) Components and Components Location

Hyundai Sonata LF 2014-2019 Service Manual / Restraint / SRSCM / SRS Control Module (SRSCM) Components and Components Location

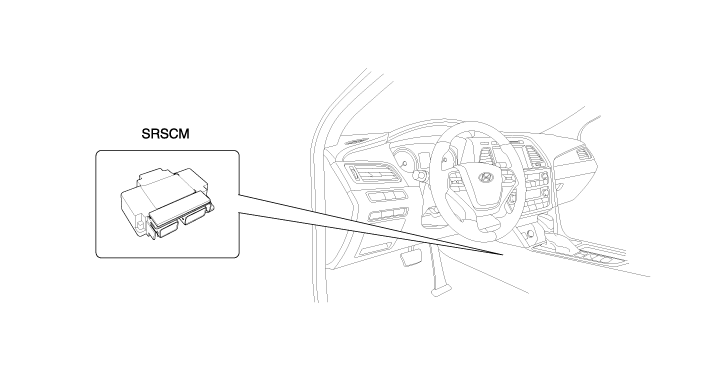

Components

SRS Control Module (SRSCM) Description and Operation
Description The primary purpose of the SRSCM (Supplemental Restraints System Control Module) is to discriminate between an event that warrants restraint system deployment and an event that does ...

SRS Control Module (SRSCM) Repair procedures
Removal 1. Remove the ignition key from the vehicle. 2. Disconnect the battery negative cable and wait for at least three minutes before beginning work. 3. Remove the floor console. (Refe ...
