Hyundai Sonata: Sunroof / Tilting the sunroof
.jpg)

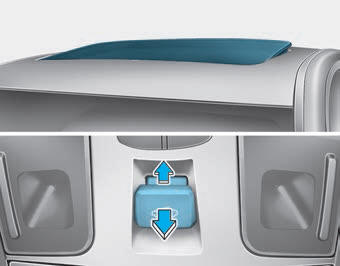

Tilt the sunroof open:
Push the sunroof control lever upward until the sunroof moves to the desired position.
To close the sunroof:
Pull the sunroof lever downward until the sunroof moves to the desired position.
NOTICE
- Periodically remove any dirt that may accumulate on the sunroof guide rail or between the sunroof and roof panel which can make a noise.
- Do not try to open the sunroof when the temperature is below freezing or when the sunroof is covered with snow or ice as the motor could be damaged.
Sliding the sunroof
Pressing the sunroof control lever backward or forward momentarily to the second
detent position completely opens or closes the sunroof even when the switch is released.
To stop the sunroof at the d ...
Sunshade
The sunshade will open automatically with the sunroof when the glass panel moves.
If you want it closed, move the sunshade manually.
NOTICE
The sunroof is made to slide together with the sunshade. D ...
