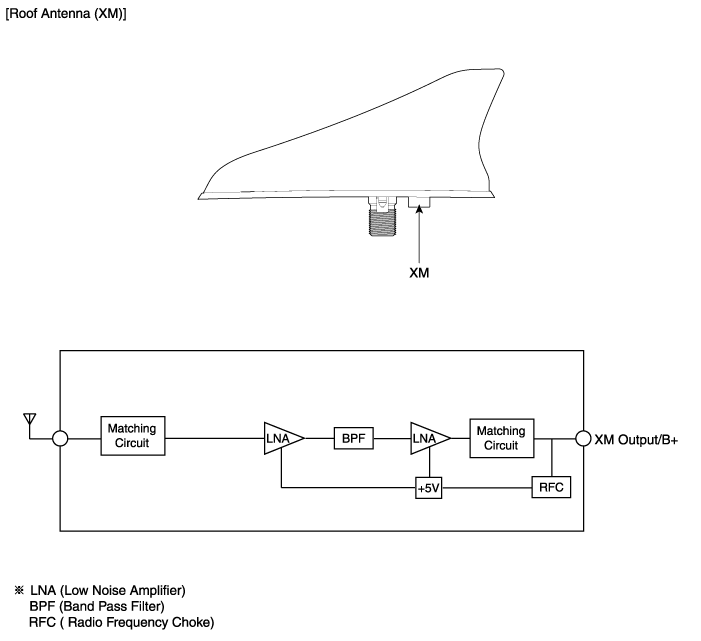

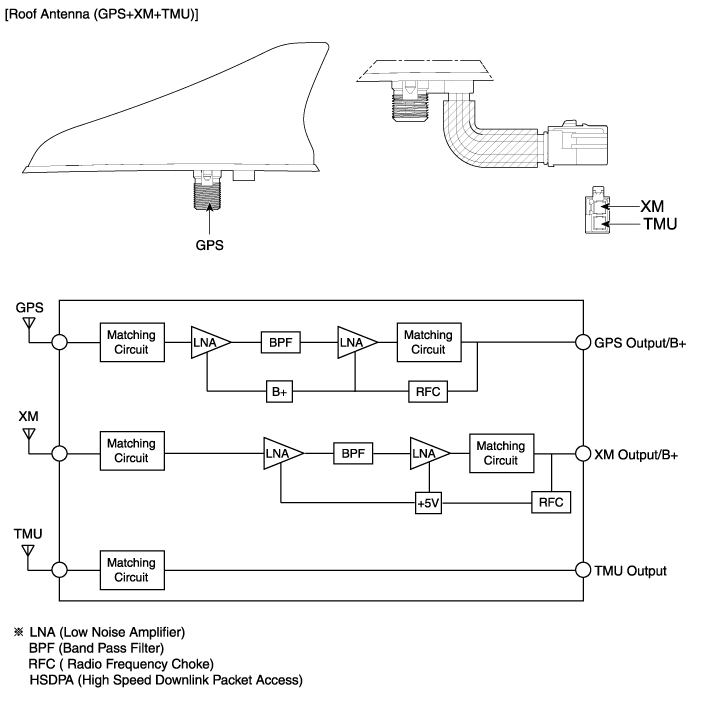

Components

Speakers Repair procedures
Inspection 1. Troubleshooting for Speaker (1) Basic inspection of speaker Inspect the sound from speaker after verifying that the speaker mounting screws is removed and the wiring connector i ...

Antenna Repair procedures
Inspection Glass Antenna Test 1. Wrap aluminum foil (A) around the tip of the tester probe (B) as shown. 2. Touch one tester probe to the glass antenna terminal (A) and move the other teste ...

Other information:

Hyundai Sonata LF 2014-2019 Service Manual: Power Door Mirror Switch Repair procedures
Inspection [Power Window Module (IMS)] 1. Disconnect the negative (-) battery terminal. 2. Remove the front left door trim. (Refer to Body - "Front Door Trim") 3. Disconnect the power mirror switch connector from the door trim. 4. Check for continuity between the terminals in each ...

Hyundai Sonata LF 2014-2019 Service Manual: Injector Troubleshooting
Signal Waveform The three waveforms below are taken from the #1 and #4 injectors. The top waveform is from the high side (feed side) of the #1 and #4 injectors, while the middle waveform is from the low side (ground side) of the #1 injector and the bottom waveform is from the low side of ...
