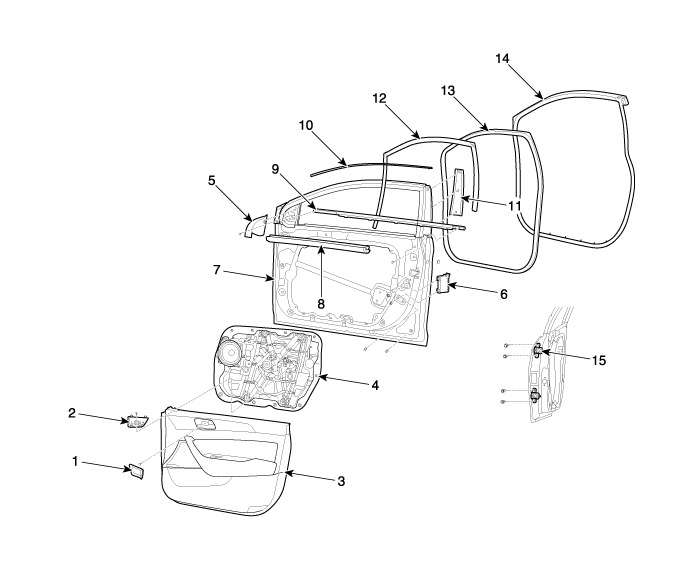

Components

1. Front door inside handle cap
2. Front door pull cap
3. Front door trim
4. Front door module
5. Front door quadrant inner cover
6. Front door lower channel
7. Front door panel
8. Front door belt inner weatherstrip

9. Front door body outside weatherstrip
10. Front door frame moulding
11. Front door frame garnish
12. Front door windshield glass run assembly
13. Front door body side weatherstrip
14. Front door side weatherstrip
15. Front door hinge

Front Door

...

Repair procedures

Adjustment Glass Adjustment • Check the glass run channel for damage or deterioration, and replace them if necessary. 1. Remove the front door trim. (Refer to F ...
