Hyundai Sonata: With Tire Mobility Kit (TMK, if equipped) - Type A / Components of the Tire Mobility Kit

Hyundai Sonata LF 2014-2019 Owners Manual / What to do in an emergency / If you Have a Flat Tire / With Tire Mobility Kit (TMK, if equipped) - Type A / Components of the Tire Mobility Kit

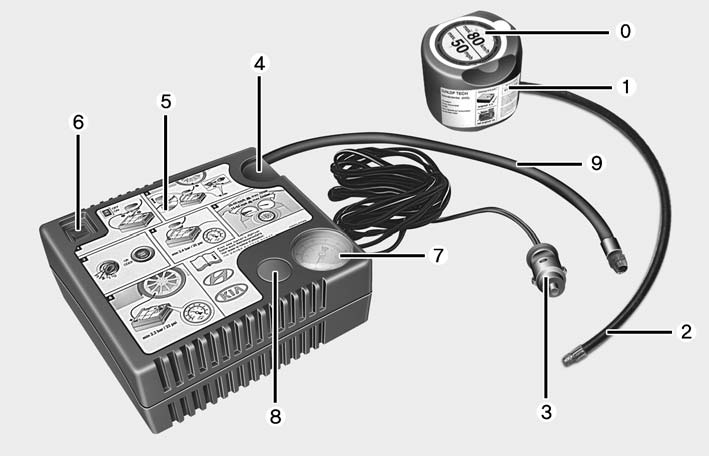

0. Speed restriction label
1. Sealant bottle and label with speed restriction
2. Filling hose from sealant bottle to wheel
3. Connectors and cable for power outlet direct connection
4. Holder for the sealant bottle
5. Compressor
6. ON/OFF switch
7. Pressure gauge for displaying the tire inflation pressure
8. Screw cap for reducing tire inflation pressure
9. Hose to connect compressor and sealant bottle or compressor and wheel

Connectors, cable and connection hose are stored in the compressor housing.

Strictly follow the specified sequence, otherwise the sealant may escape under high pressure.

WARNING

Do not use the tire sealant after the sealant has expired (i.e. pasted the expiration date on the sealant container). This can increase the risk of tire failure.

WARNING

Keep out of reach of children.
Avoid contact with eyes.
Do not swallow.

Notes on the safe use of the Tire Mobility Kit

Park your car at the side of the road so that you can work with the Tire Mobility Kit away from moving traffic. To be sure your vehicle will not move, even when you’re on fairly level ground, ...

Using the Tire Mobility Kit

1. Detach the speed restriction label (0) from the sealant bottle (1), and place it in a highly visible place inside the vehicle such as on the steering wheel to remind the driver not to drive too f ...
