Hyundai Sonata: Cooling System / Cooling Fan Description and Operation

Hyundai Sonata LF 2014-2019 Service Manual / Engine Mechanical System / Cooling System / Cooling Fan Description and Operation

Description

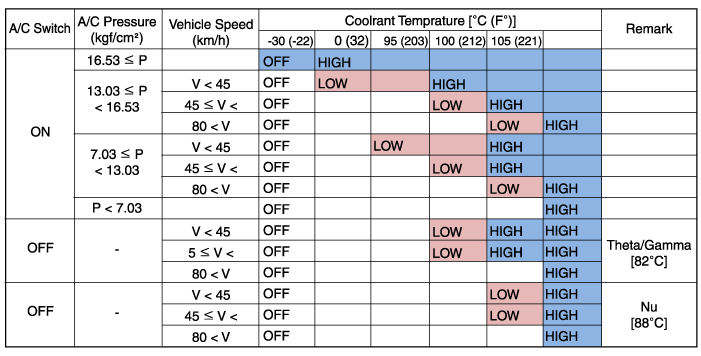

Cooling fan is operated by 2 step (High/Low) and control in according to coolant temperature, vehicle speed and ON/OFF of air conditioner in engine ECM.

Cooling Fan Components and Components Location

Components 1. Cooling fan controller (PWM)2. Fan motor3. Cooler fan4. Cooling fan shroud ...

Cooling Fan Specifications

Specification ???? Motor capacity (W)170CTAX12200Fan typePuller Fan speed controlResiser (HI-LOW-OFF ) Air volume (?/h)2,650 -8% min. 2,800 min.PRM1,700 ±8%1,800 ±8%Current consumption (A)14. ...
