Hyundai Sonata: Engine Control System / CVVT Oil Control Valve (OCV) Schematic Diagrams

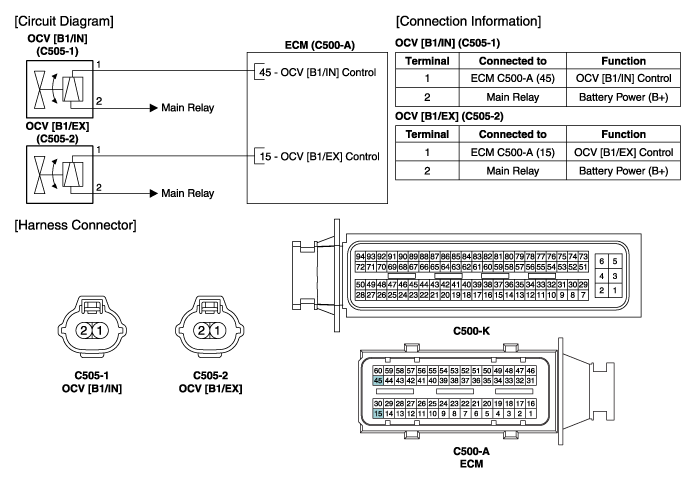

Circuit Diagram

CVVT Oil Control Valve (OCV) Specifications
Specification ItemSpecificationCoil Resistance (?)6.9 ~ 7.9 [20°C(68°F)] ...

CVVT Oil Control Valve (OCV) Repair procedures
Inspection 1. Turn the ignition switch OFF. 2. Disconnect the OCV connector. 3. Measure resistance between the OCV terminals 1 and 2. 4. Check that the resistance is within the specifi ...

Other information:

Hyundai Sonata LF 2014-2019 Service Manual: Driver Airbag (DAB) Module and Clock Spring Repair procedures
Removal 1. Disconnect the battery negative cable and wait for at least three minutes before beginning work. 2. Remove the driver airbag module from the steering wheel after pressing the snap fit pin stopper. 3. Remove the wiring fixing clip (C) and disconnect the horn connector (A). ...
