Removal |
1. |
Remove the dual clutch transmission from the vehicle.
(Refer to Dual Clutch System - "Repair procedures") |
2. |
Remove the retaining (A) and then removing the spline hub (B). |
3. |
Remove the snap ring (A). |
4. |
Remove the dual clutch assembly (A) by using the special service tool [SST No.: 09430-C1180]. |
Installation |
|
1. |
Install the SST (No.:09430-2A240) on the support bearing within the dual clutch assembly (A). |
2. |
Install the SST (No. : 09430-2A240) on the clutch housing side. |
3. |
Install the dual clutch assembly (A) using the SST (No. : 09430-2A240). |
4. |
Install the snap ring (A). |
5. |
Install the spline hub (B) and the install the snap ring (A). |
6. |
Perform the work procedures for abrasion compensation reset after installing the new dual clutch assembly.
(Refer to Clutch Actuator Assembly - "Adjustment") |
7. |

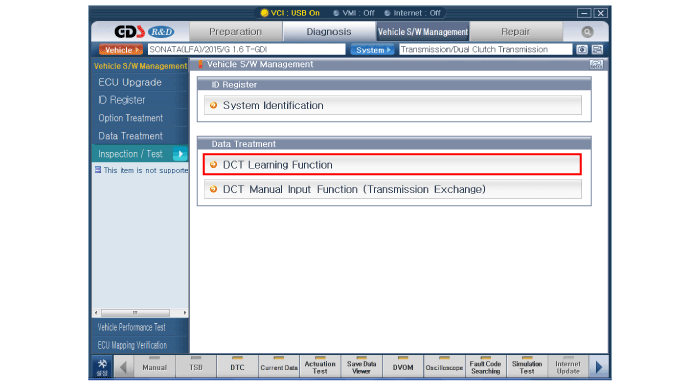

Perform the clutch touch point learning procedure using the GDS after replacing the dual clutch assembly. |
