Hyundai Sonata: Driveshaft Assembly / Front Driveshaft Components and Components Location

Hyundai Sonata LF 2014-2019 Service Manual / Driveshaft and axle / Driveshaft Assembly / Front Driveshaft Components and Components Location

Components
[THETA 2.4 GDI]

1. Driveshaft (LH)
2. Driveshaft (RH)
3. Heat protect

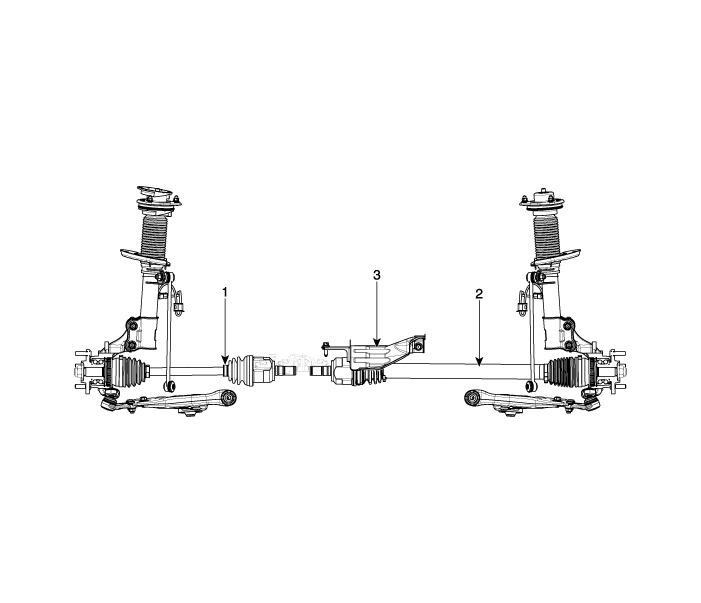

[THETA 2.0 T-GDI / GAMMA1.6 T-GDI]

1. Driveshaft (LH)
2. Driveshaft (RH)
3. Inner shaft bearing bracket assembly

Driveshaft Assembly
...

Front Driveshaft Repair procedures
Removal 1. Raise the vehicle, and make sure it is securely supported. 2. Remove the wheel cap (A).     Be careful not to damage to the wheel cap (A) when removing the it. ...
