Hyundai Sonata: Convenient features of your vehicle / Instrument cluster
.jpg)

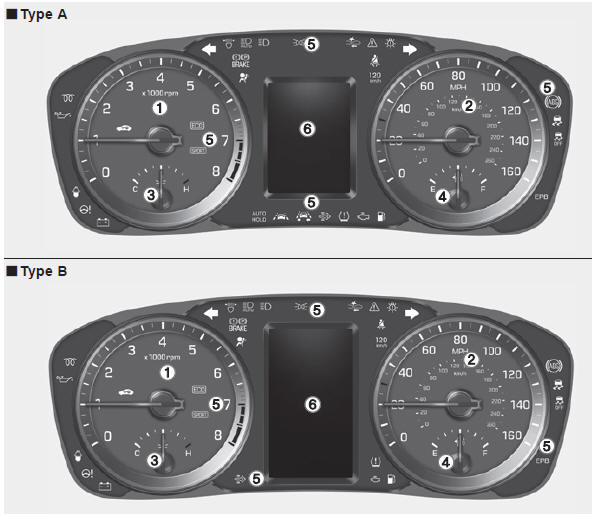

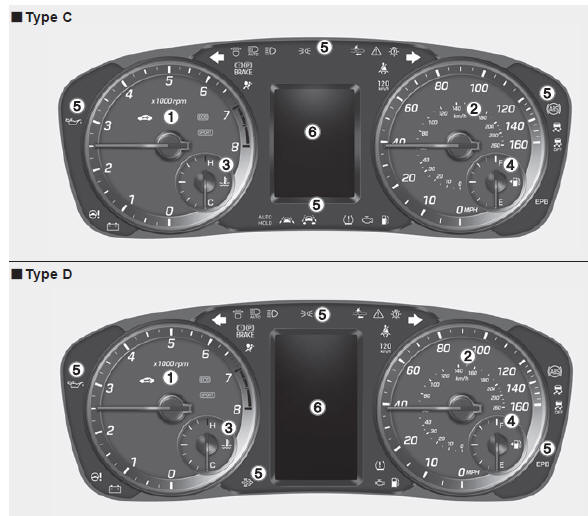

1. Tachometer
2. Speedometer
3. Engine coolant temperature gauge
4. Fuel gauge
5.Warning and indicator lights
6. LCD display (including Trip computer)
1. Tachometer
2. Speedometer
3. Engine coolant temperature gauge
4. Fuel gauge
5.Warning and indicator lights
6. LCD display (including Trip computer)
Emergency fuel filler door release
If the fuel filler door does not open using the remote fuel filler door release
button, you can open it manually. Pull the release located on the left side of the
trunk compartment. ...
Instrument Cluster Control
Adjusting instrument cluster illumination
When the vehicle's parking lights or headlights are on, press the illumination
control button to adjust the brightness of the instrument panel illumination. ...
