Hyundai Sonata: Instrument cluster / Instrument Cluster Control
Adjusting instrument cluster illumination
.jpg)

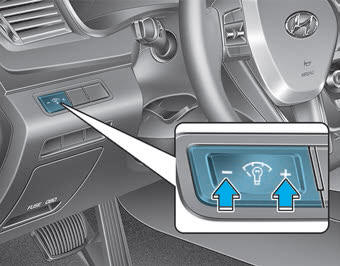

When the vehicle's parking lights or headlights are on, press the illumination control button to adjust the brightness of the instrument panel illumination.
When pressing the illumination control button, the interior switch illumination intensity is also adjusted. The selected brightness of illumination can be saved in the Driver Position Memory System (if equipped).

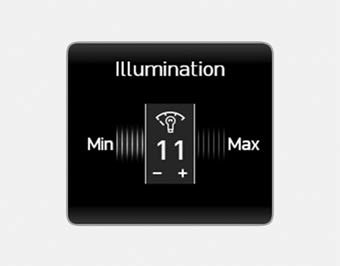

- The brightness of the instrument panel illumination is displayed.
- If the brightness reaches the maximum or minimum level, an alarm will sound.
Instrument cluster
1. Tachometer
2. Speedometer
3. Engine coolant temperature gauge
4. Fuel gauge
5.Warning and indicator lights
6. LCD display (including Trip computer)
1. Tachometer
2. Speedometer
3. Engine coolant ...
LCD Display Control
The LCD display modes can be changed by using the control buttons on the steering
wheel.
(1) : MODE button for changing modes
(2) ▲, ▼ : MOVE switch for changing items
(3) OK : SELECT/RESET butt ...
