Hyundai Sonata: BCM (Body Control Module) / Schematic Diagrams

Hyundai Sonata LF 2014-2019 Service Manual / Body Electrical System / BCM (Body Control Module) / Schematic Diagrams

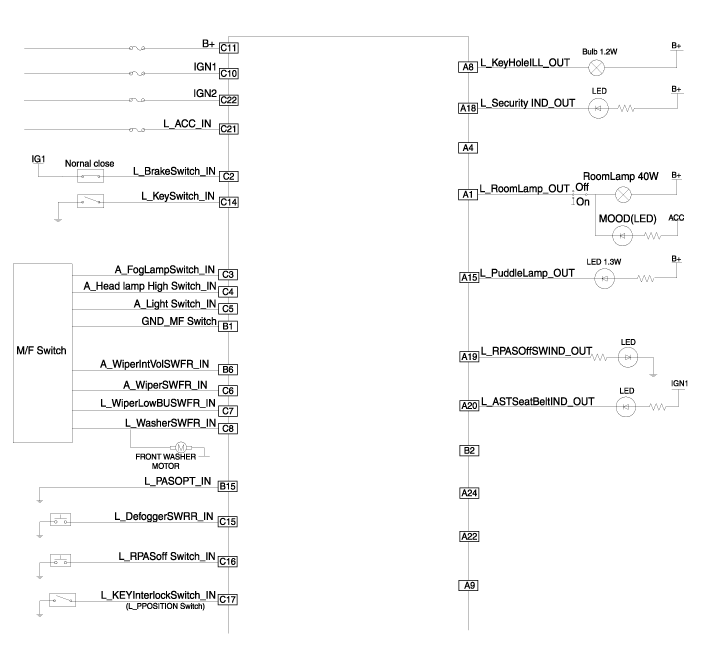

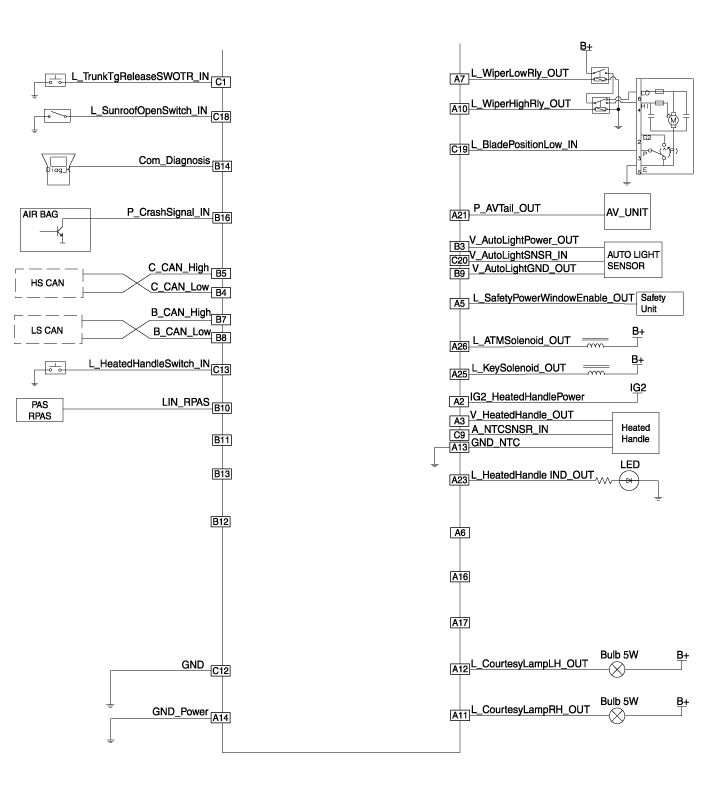

Circuit Diagram
