Hyundai Sonata: Your vehicle at a glance / Exterior overview

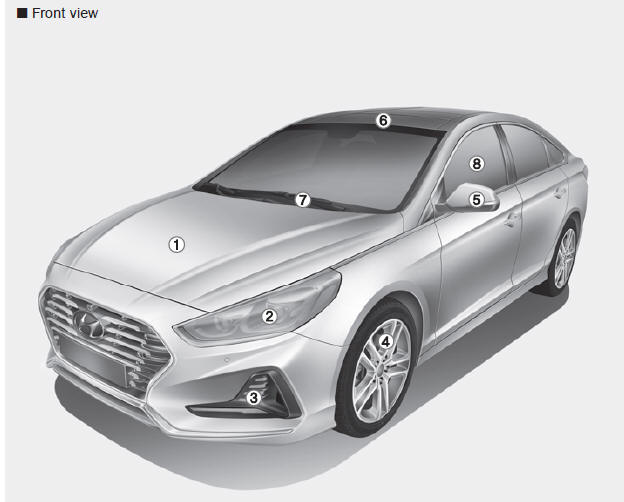

1. Hood
2. Headlamp
3. DRL/Parking lamp
4. Tires and wheels
5. Side view mirrors
6. Sunroof
7. Front windshield wiper blades
8. Windows

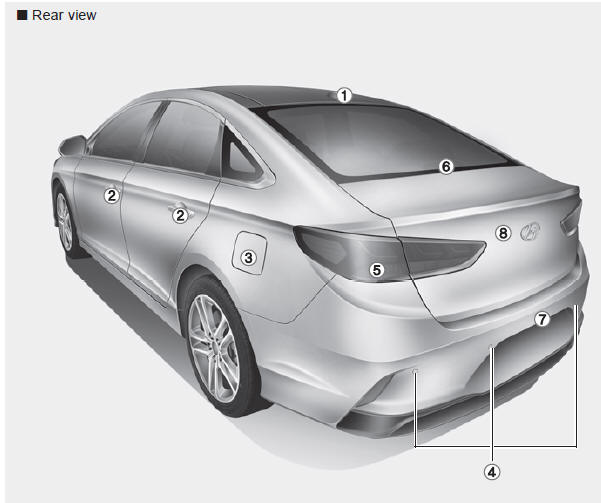

1. Antenna
2. Doors
3. Fuel filler door
4. Rear parking assist system
5. Rear combination lamp
6. High mounted stop lamp
7. Rearview camera
8. Trunk
Interior overview
1. Door lock/unlock button
2. Driver position memory system
3. Side view mirrors control switch
4. Central door lock switch
5. Power window switches
6. Power window lock switch
7. Hood release lever
...
