Hyundai Sonata: Scheduled Maintenance Services / Maintenance Under Severe Usage Conditions (Theta 2.4 GDI)

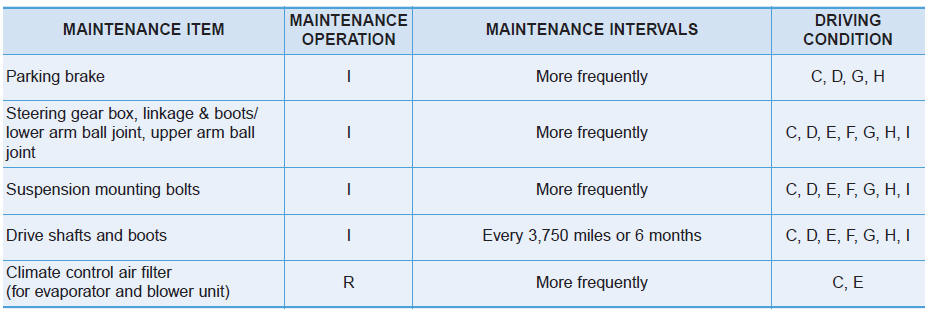

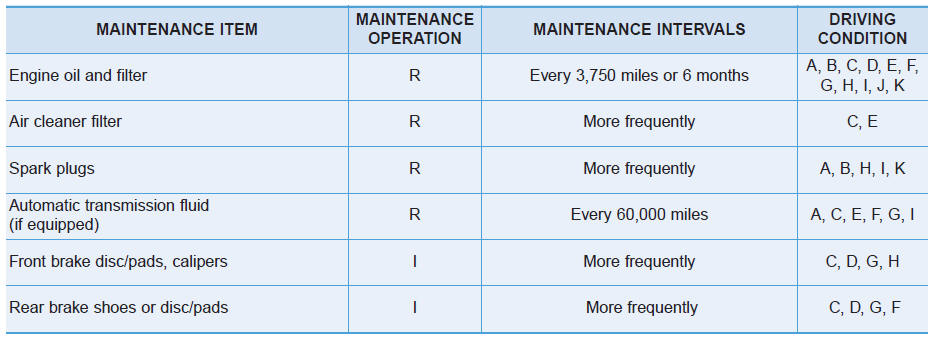

The following items must be serviced more frequently on cars normally used under severe driving conditions. Refer to the chart below for the appropriate maintenance intervals.
R : Replace
I : Inspect and, after inspection, clean, adjust, repair or replace if necessary
.jpg)
.jpg)
Normal Maintenance Schedule (Theta 2.4 GDI)
I : Inspect : Inspect and if necessary, adjust, correct, clean or replace.
R : Replace or change.
...
Explanation of Scheduled Maintenance Items
Engine Oil and Filter
The engine oil and filter should be changed at the intervals specified in the
maintenance schedule. If the car is being driven in severe conditions, more frequent
oil and filte ...
