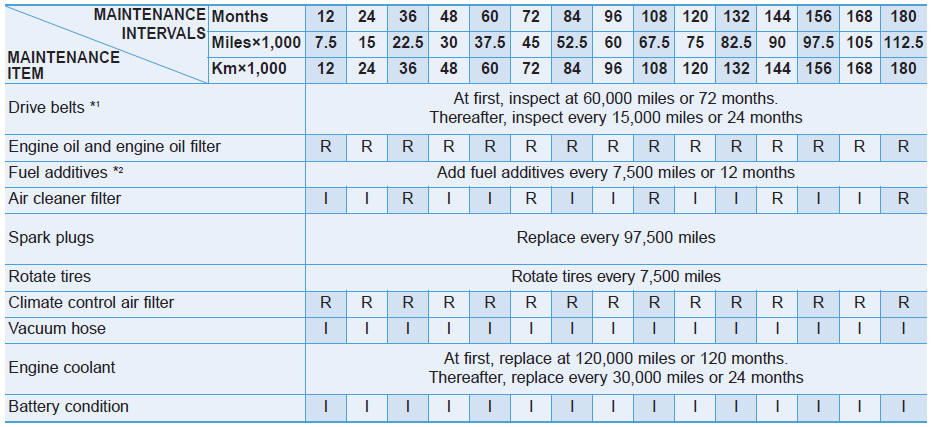

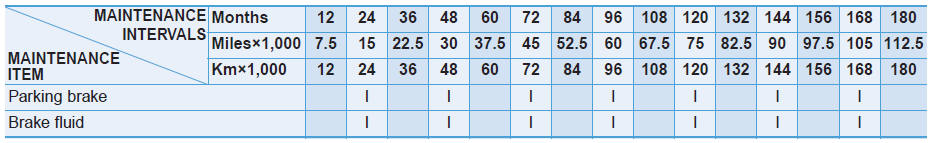

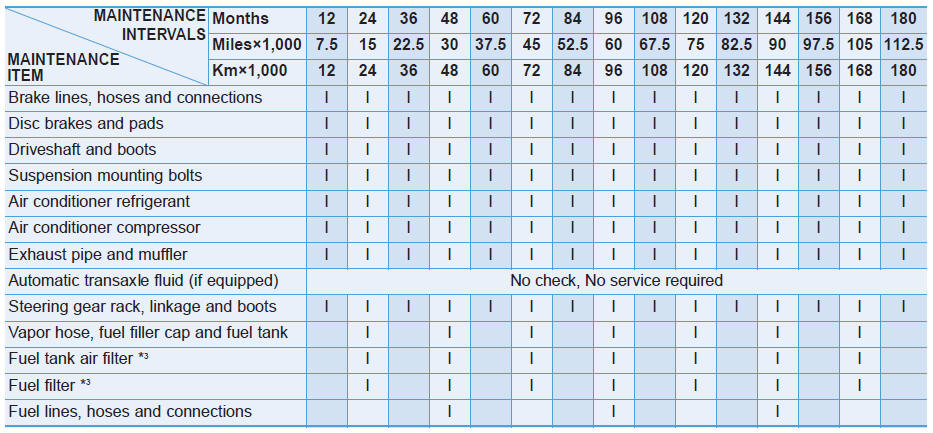

Hyundai Sonata: Scheduled Maintenance Services / Normal Maintenance Schedule (Theta 2.4 GDI)
.jpg)
I : Inspect : Inspect and if necessary, adjust, correct, clean or replace.
R : Replace or change.
.jpg)
.jpg)
Severe Driving Conditions
A- Repeatedly driving short distances of less than 5 miles (8 km) in normal temperature
or less than 10 miles (16 km) in freezing temperature
B- Extensive engine idling or low speed driving for long ...
Maintenance Under Severe Usage Conditions (Theta 2.4 GDI)
The following items must be serviced more frequently on cars normally used under
severe driving conditions. Refer to the chart below for the appropriate maintenance
intervals.
R : Replace
I : Inspec ...
