Hyundai Sonata: Safety system of your vehicle / Seats

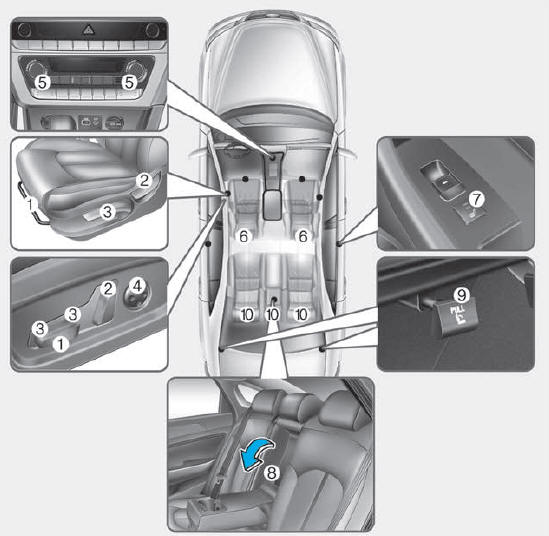

Front seats
1. Seat sliding forward or rearward adjustment
2. Seatback angle adjustment
3. Seat cushion height adjustment
4. Lumbar support adjustment
5. Seat warmer/Air ventilation seat
6. Head restraint
Rear seats
7. Seat warmer
8. Armrest
9. Seatback folding lever (trunk)
10. Head restraint
Important Safety Precautions
You will find many safety precautions and recommendations throughout this section,
and throughout this manual. The safety precautions in this section are among the
most important.
Always Wear Your S ...
Safety Precautions
Adjusting the seats so that you are sitting in a safe, comfortable position plays
an important role in driver and passenger safety together with the seat belts and
air bags in an accident.
WARNING
D ...
